How to add Node Displacements to the table results

Aftab

Hi there, I am interested to add displacement of a node to the table results. However the node number in the CXX are different from my internal solver number. Is there a CXX card I can extract displacement of a node for complete time cycle.
Or how can I add that node to the table, and I can see the displacement there.
Many thanks
Aftab

disla

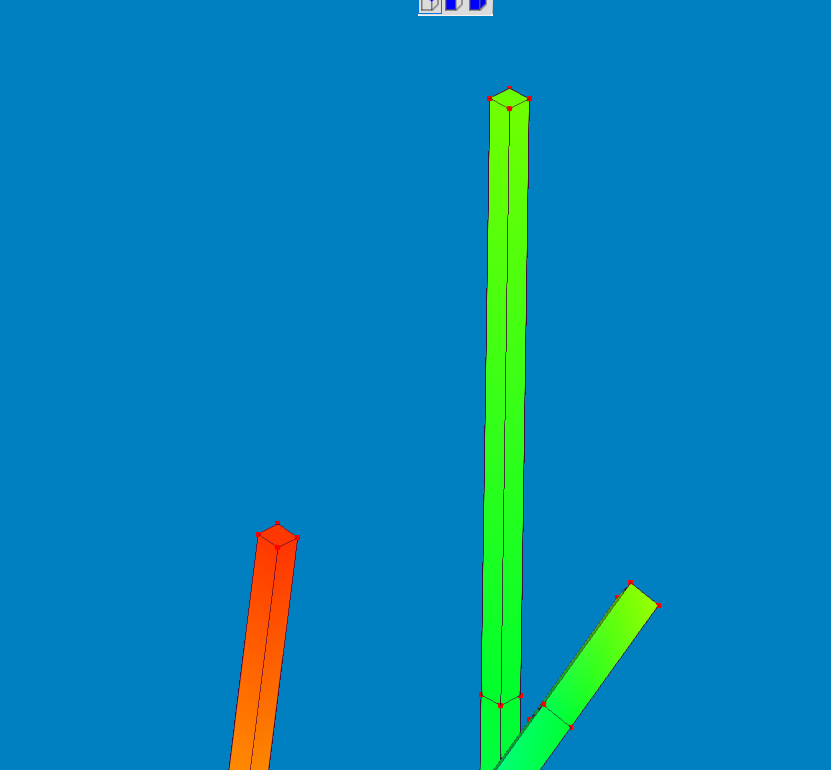

That’s because ccx expands the beam element into a solid element. Each node becomes 4 nodes. Before solving give to the node, a name into the Named selection tree. Once solved you can add a new table int the Solution tree by right click > New table. Select the name you previously give and select the displacements to show or save to a csv file.
I have added the table to my previous example file.

Aftab

Many thanks for your help.
