Radial Displacement Plot

hooshsim

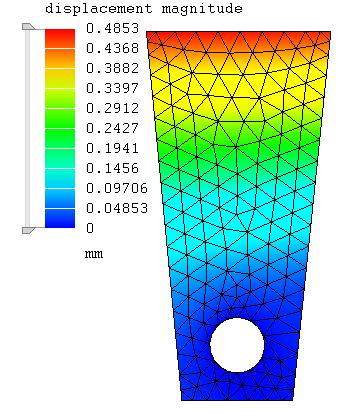

Could someone elaborate how to generate radial displacement contour plot for the attached test case? The part is a representative blade of an axial fan. Loading conditions are airloading and rotational velocity.
Thanks in advance - Hoosim

Victor

Add a formula to the solution of

( z*u.z + x*u.x ) / sqrt(z^2+x^2)

I've attached an updated copy of your model that includes this.

hooshsim

Thank you, Victor. Appreciate the support.
