Importing lines

glanzglanz
New user here. I have 9.0 have tried importing 2D Step and DXF and nothing shows up. Is there a setting somewhere I need to set?
Thanks!

Comments

  • VictorVictor

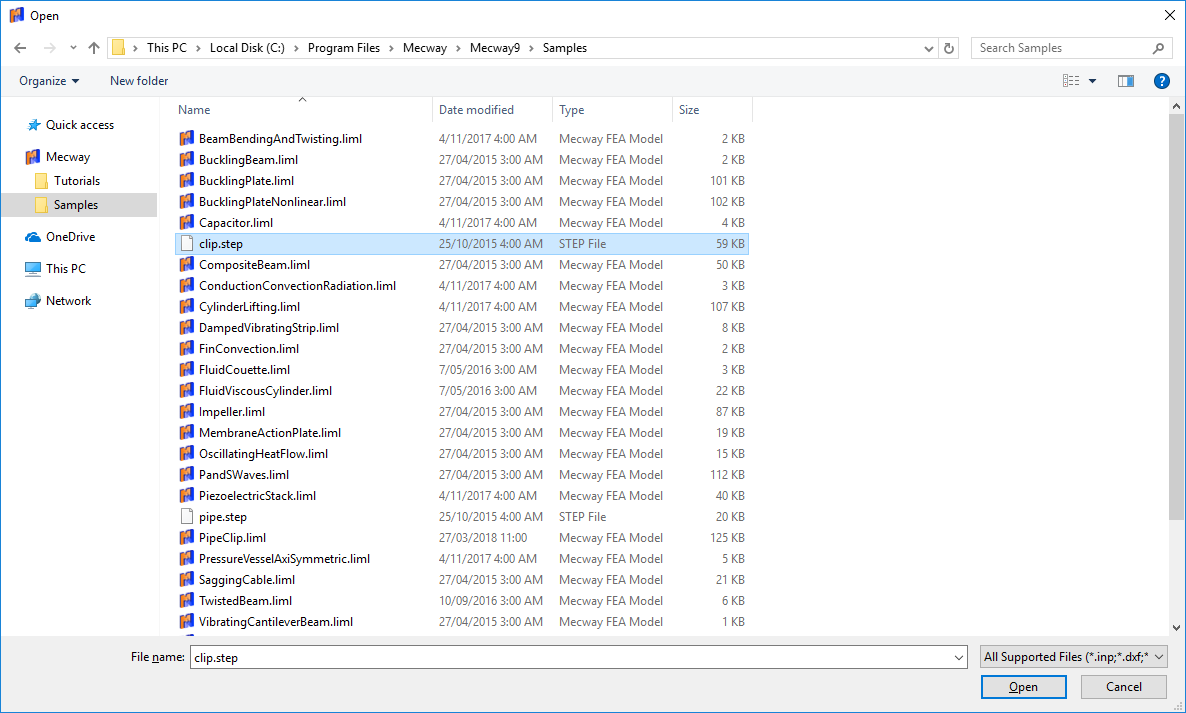

    The files might be using features that aren't supported. Try some of the STEP files in the Samples folder and the DXF attached here which should all appear.
  • glanzglanz
    The sample clip.stp is a solid model. I was trying to read in a 2d straight line dxf and step. Thanks
  • VictorVictor
    I didn't notice the title, sorry. No, Mecway doesn't support lines in STEP files. It supports some types of lines in DXF, as you can see, but not all of them, which might be why it's not showing up. Your file might use POLYLINE which is not supported but if you can change that to LWPOLYLINE, it should be OK. In AutoCAD, you can convert from one to the other.
