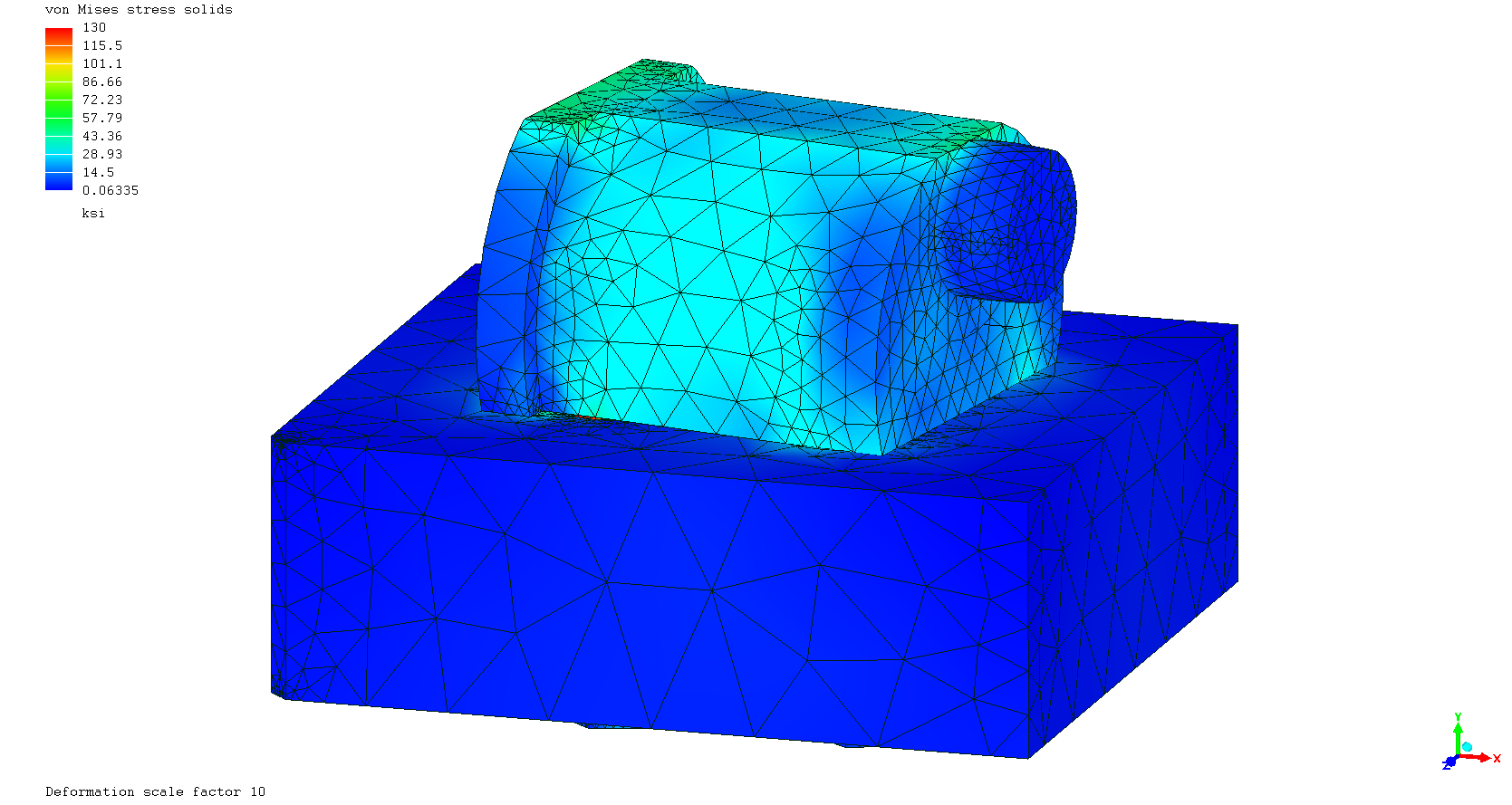

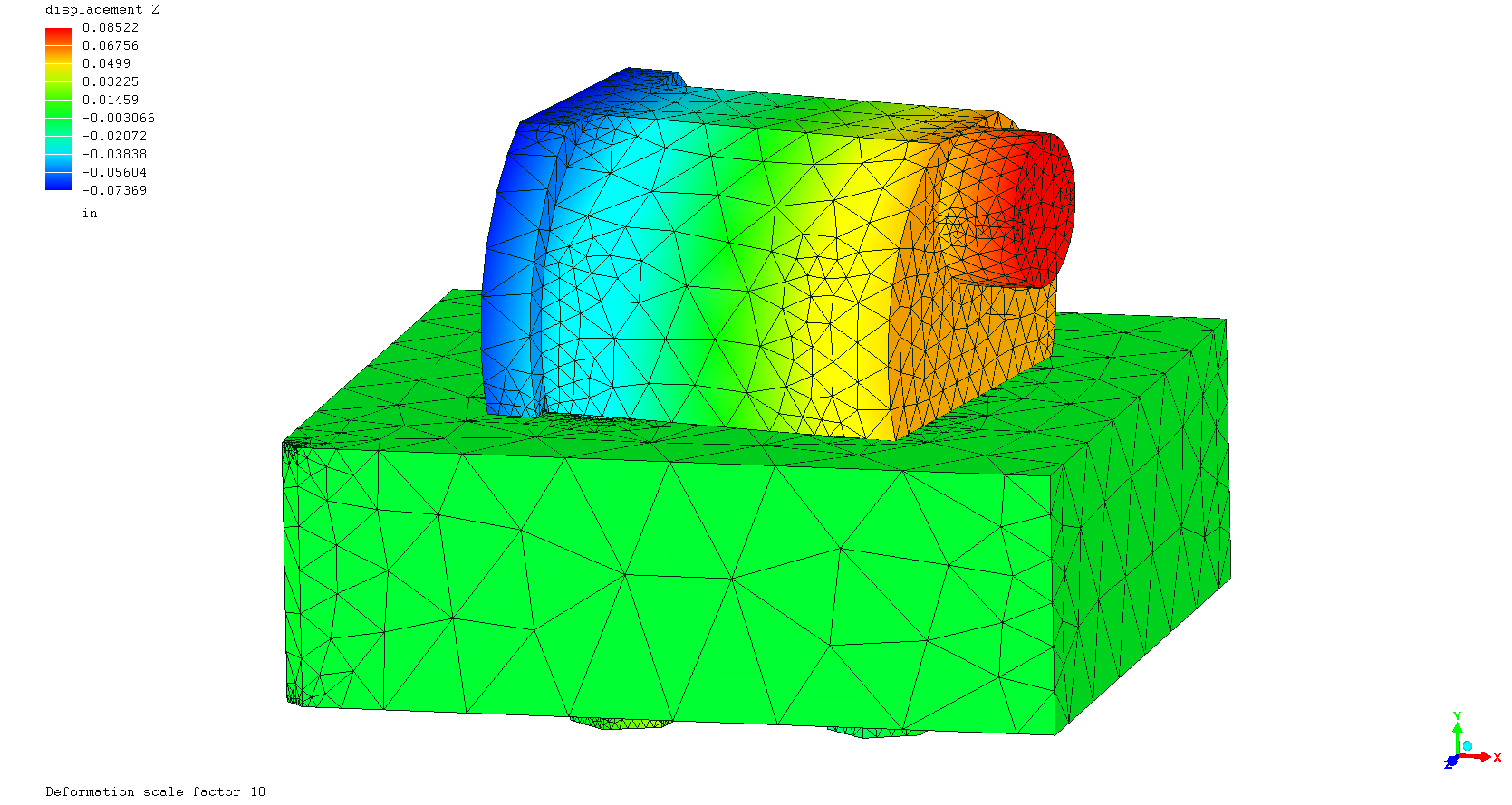

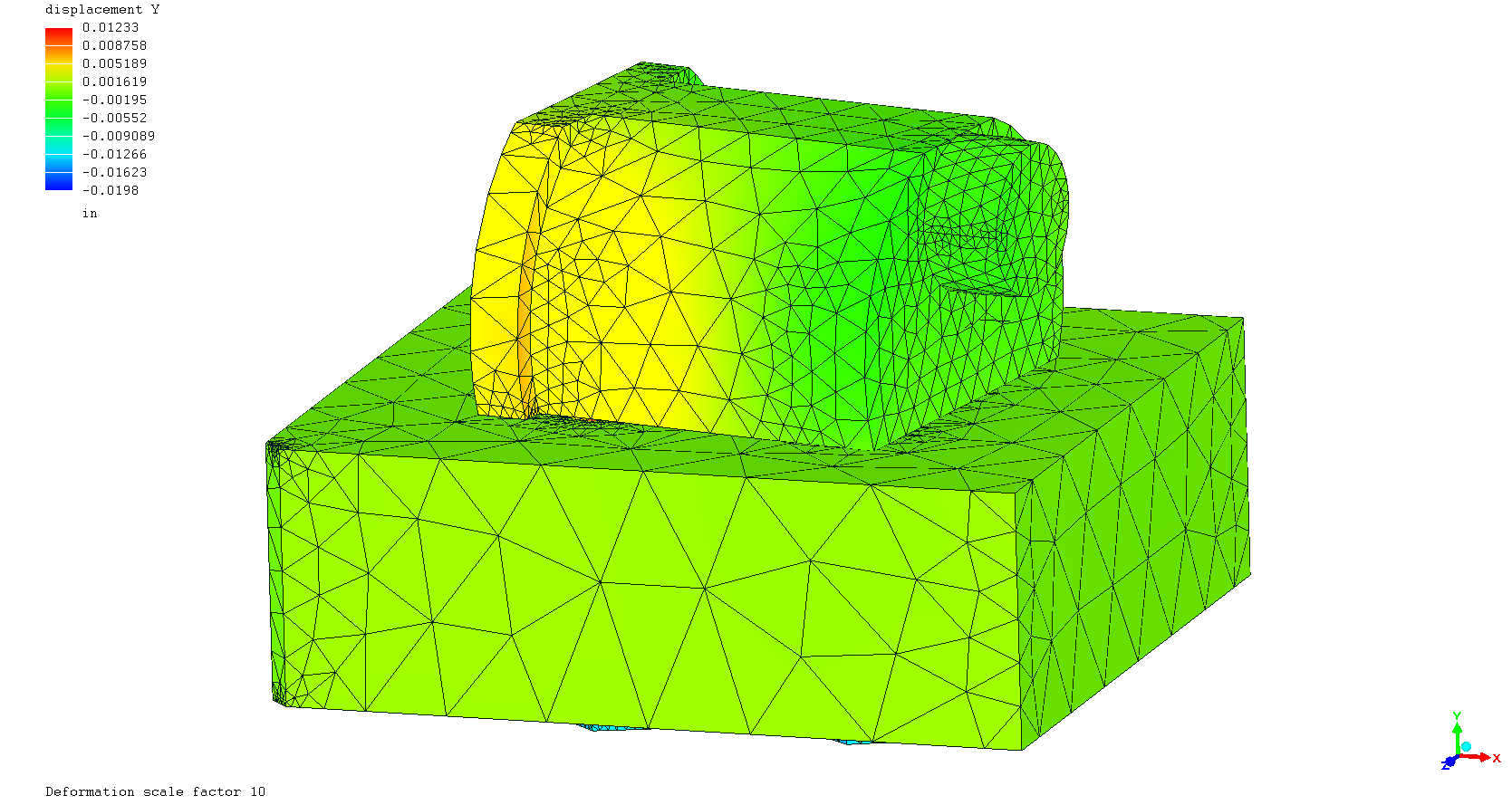

engine mount adapter with large rotational load

SteveMelton

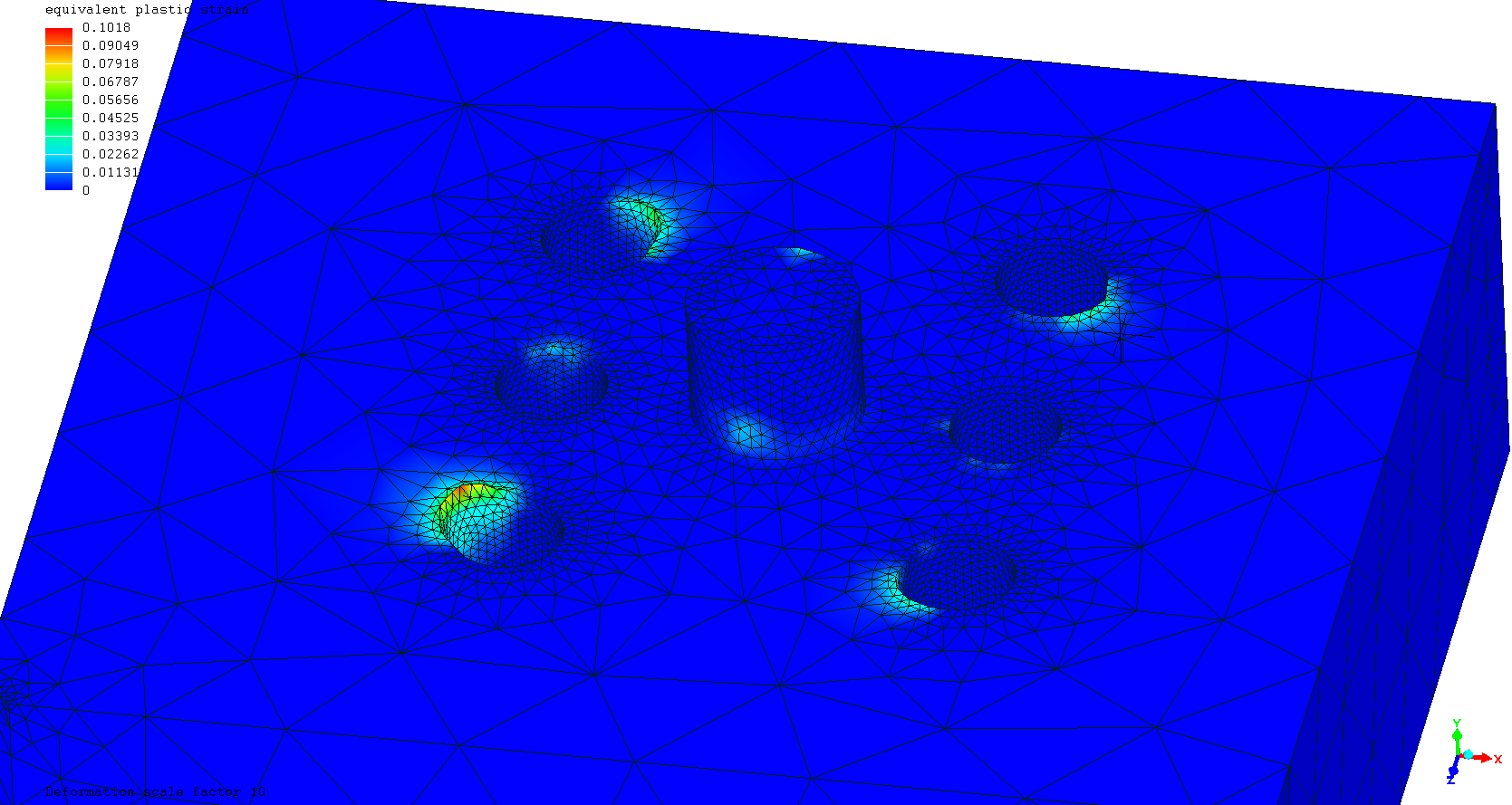

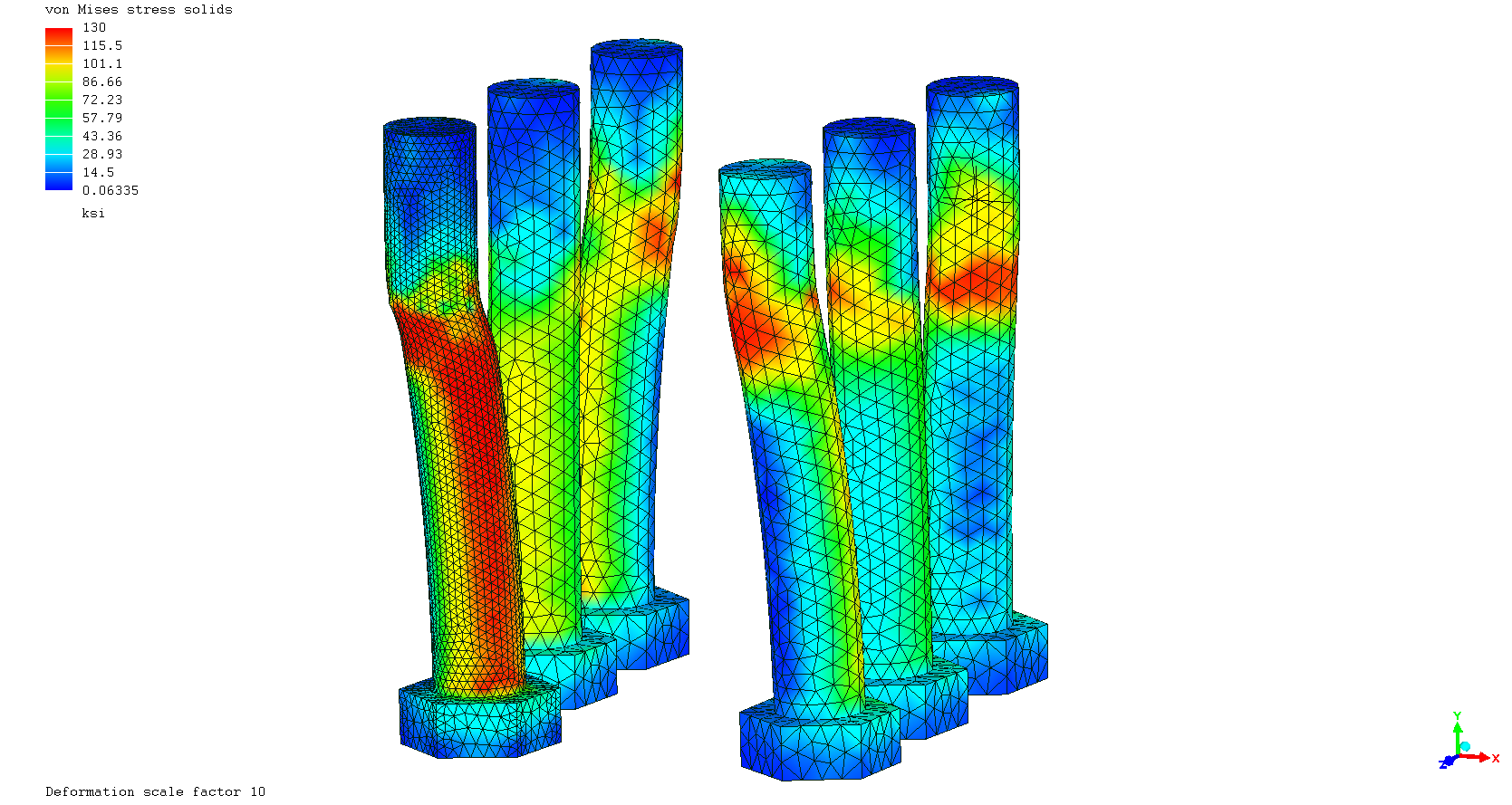

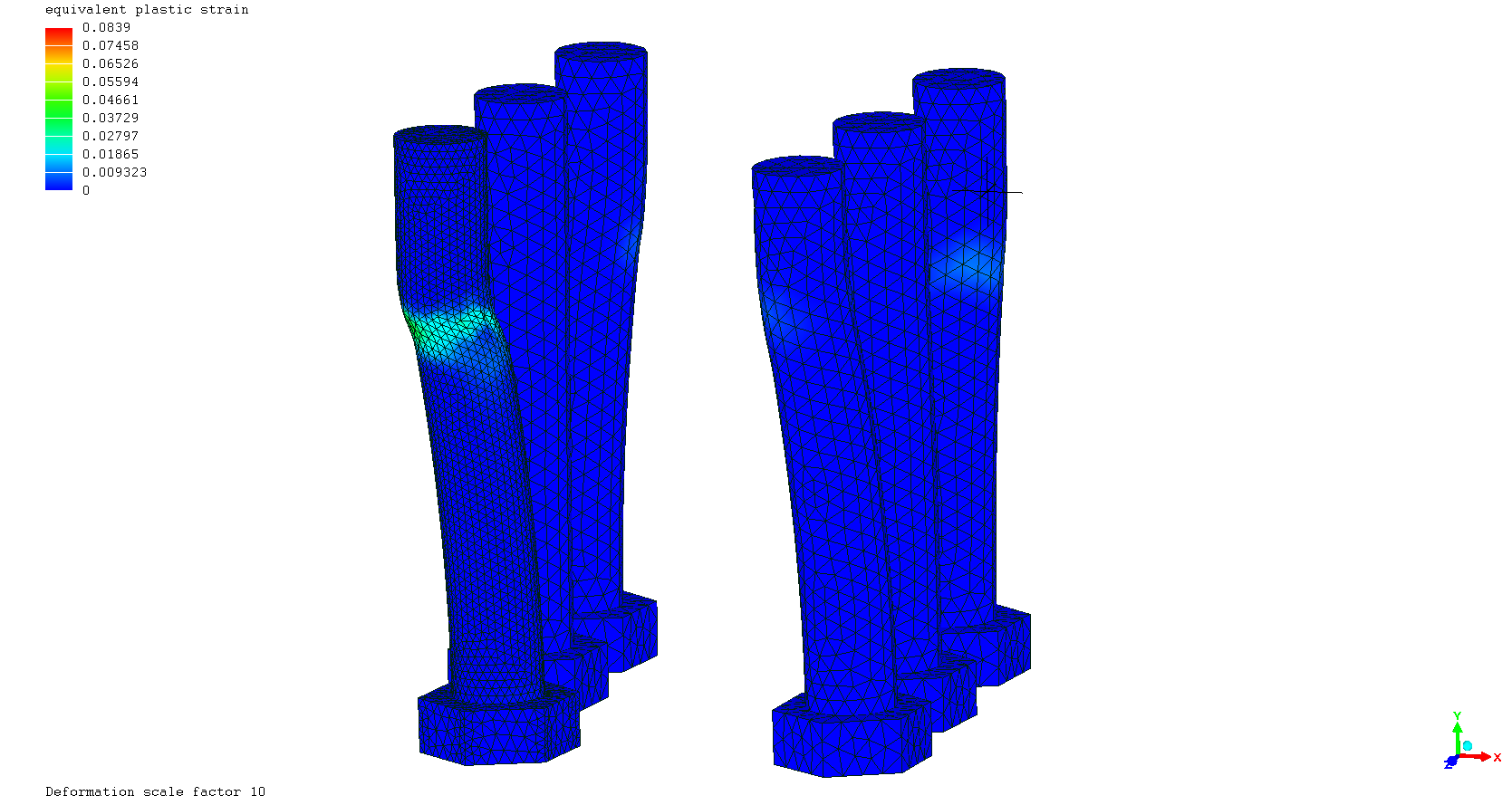

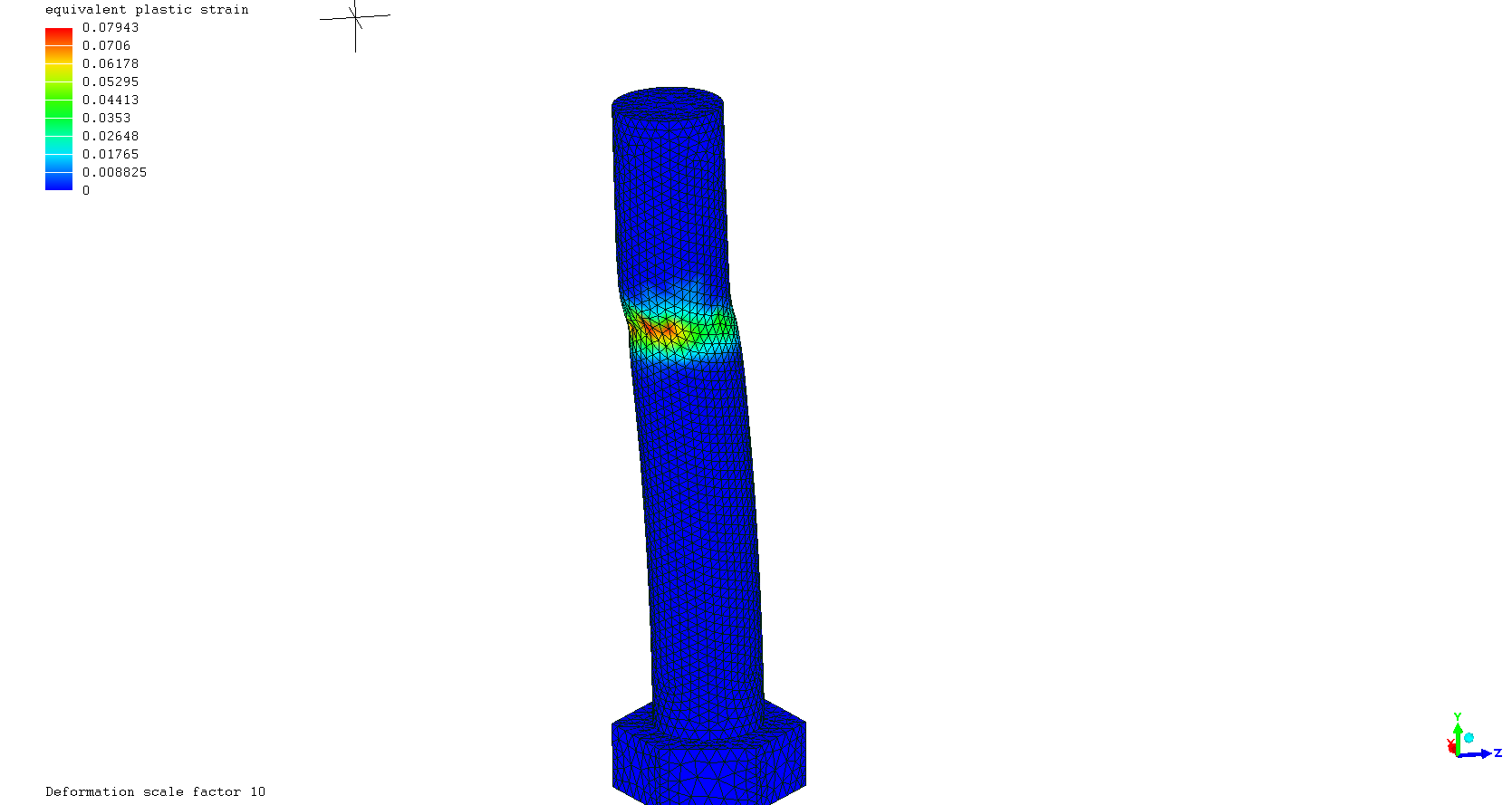

elastic and plastic analysis. one bolt is offset to maximum mfg tolerance. you can see it in the lower left hand side.

many contact elements

disla

Nice pictures Steve.

¿Are you using bolts or rodbar?
I suppose you are neglecting the threads in both the bolt and mount adapter ¿isn't it?.
¿Is it a common practice when modelling studs or bolts?
It looks to me like it is a point of important stress concentration when the bolt is in shear or bending.
Thanks in advance.

SteveMelton

for this plastic analysis I neglected the bolt threads.

SteveMelton

note: I was able to apply bolt pre-tension by using offset nodes and the contact feature. That was a nice.

Sergio

Nice model! Can you post an animation of the results?

Regards

SteveMelton

I may be able to do that but give me some time.
