Export Graphical Results to 3D Bim Program?

DesignEngineerBIMDesignEngineerBIM
edited November 2014
Hi Victor
I was wondering if it is possible to export the FEA results to my Architectural BIM program

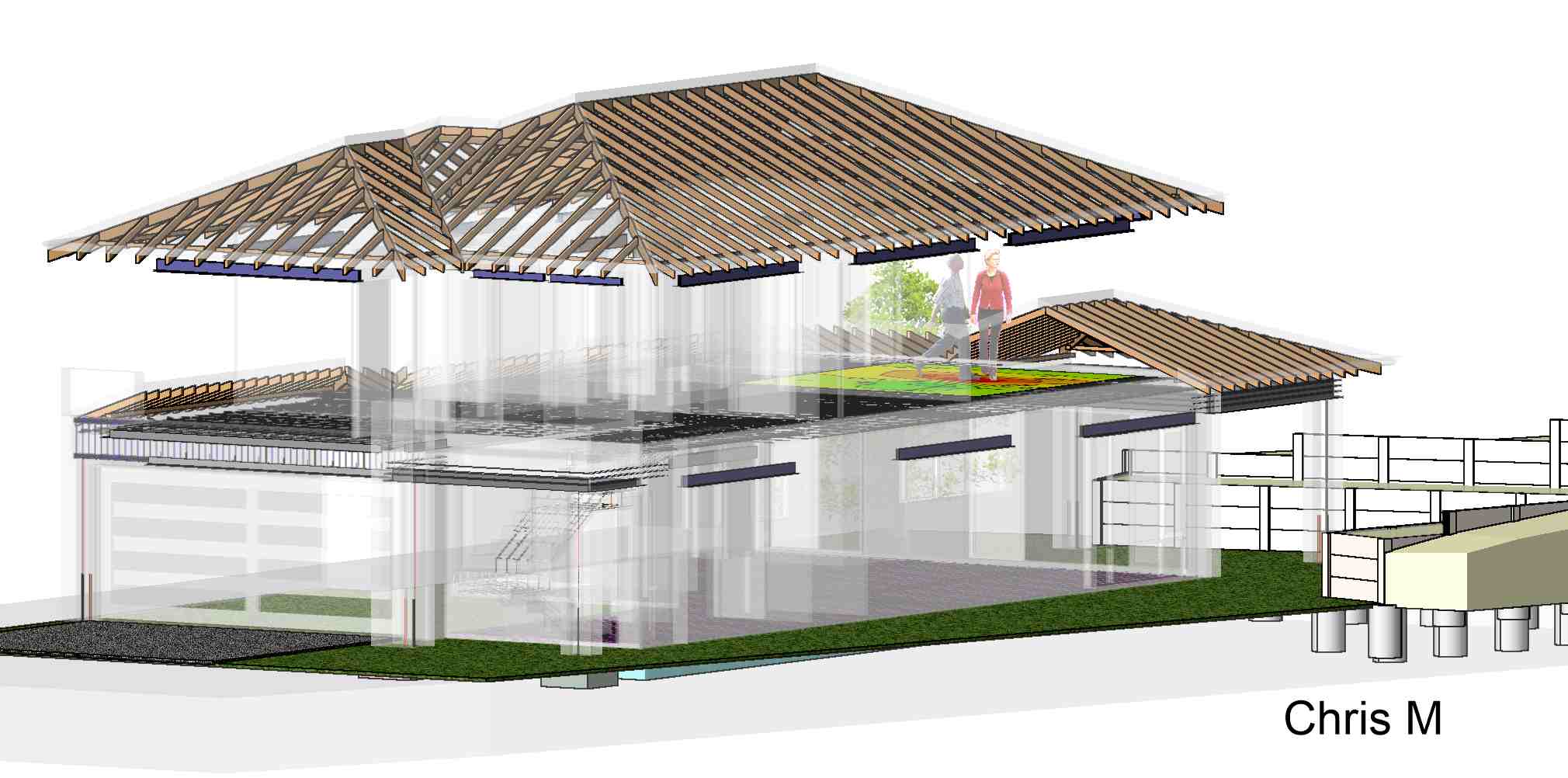

for presentation. See attached example
Thanks

Comments

  • VictorVictor
    Hello

    There's no convenient way at the moment. The closest would be VRML export which has the color contours. However that's an obsolete format so it might be difficult to find tools to get it onto BIM software.

    Is there a specific file format that would be most convenient for you? I could look into adding that in future versions.
