STEP model generated using Opencascade fails to open correctly

jakejake
Dear All,

I attached an stp file generated using PythonOCC (python bindings of Opencascade).
The model opens nicely in a number of programs I tried: Ansys, Autodesk Inventor, Creo... However, in Mecway it shows just one part.
I wonder if you could take a look at it - thanks in advance!

Cheers
Jake

Comments

  • jakejake

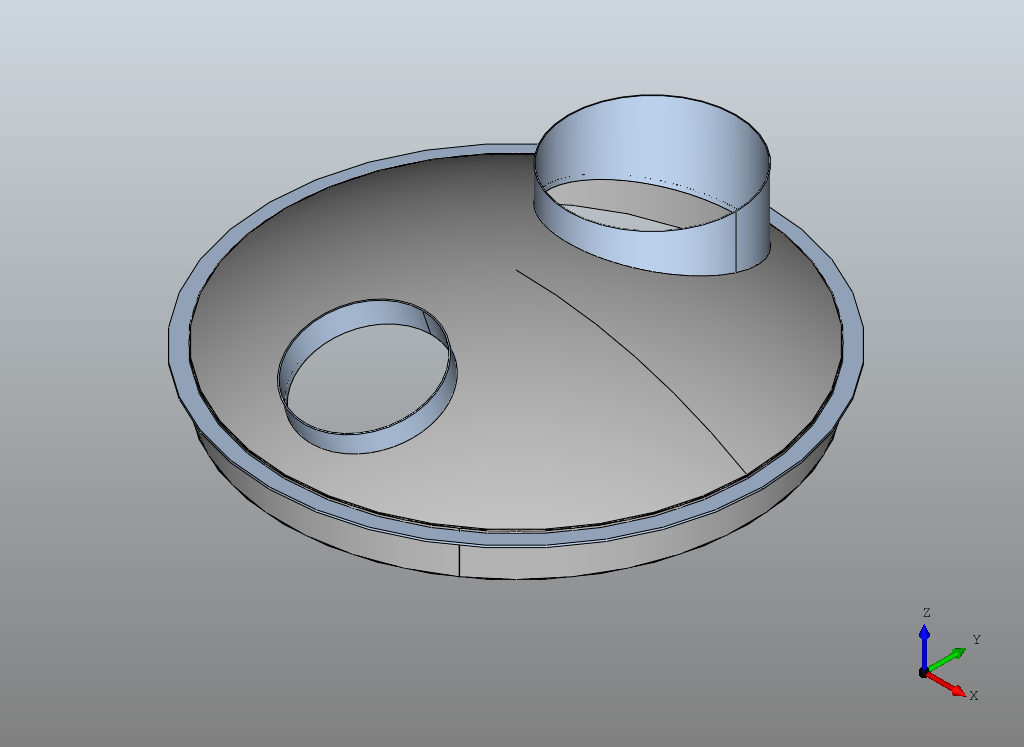

    As reference: the model looks like the attached pic in the pythonOCC native viewer.
  • SergioSergio
    As far as I remember, Mecway only allow for one body in each step file. You mention that only open one part, so is a normal behaviour for Mecway. Try to export only one part for step file.
  • jakejake
    Hi Sergio,

    you are right, this is the problem. Thank you for the answer! I'll see if I can glue stuff together.

    Do you know if this limitation will ever be lifted? It certainly would make sense.
