Featured example #02 - Compression test on security shoe

SergioSergio

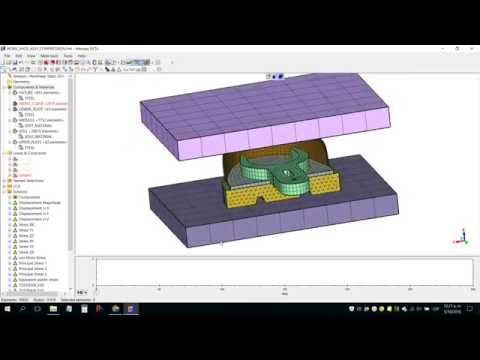

Hi, this is a new example of a security shoe, including two load steps (first is fixation of the assembly againt the lower plate, second is the loading/unloading, contact, and plastic definition for the steel reinforcement. The simulation represents the compression test according to local standard (Argentina) IRAM 3610 E3 2014



Regards!
