Export deformed mesh to use as initial mesh for another analysis

Sergio

Hi, I have a shell model, and want to export the deformed mesh from a modal analysis, it´s possible from the Mecway GUI? Would it be possible to setup the scale of the deformation?

Sergio

I found it :-)

Would it be nice that the menú option would be available from the results itself, and an option to writte it to a new file.

JohnM

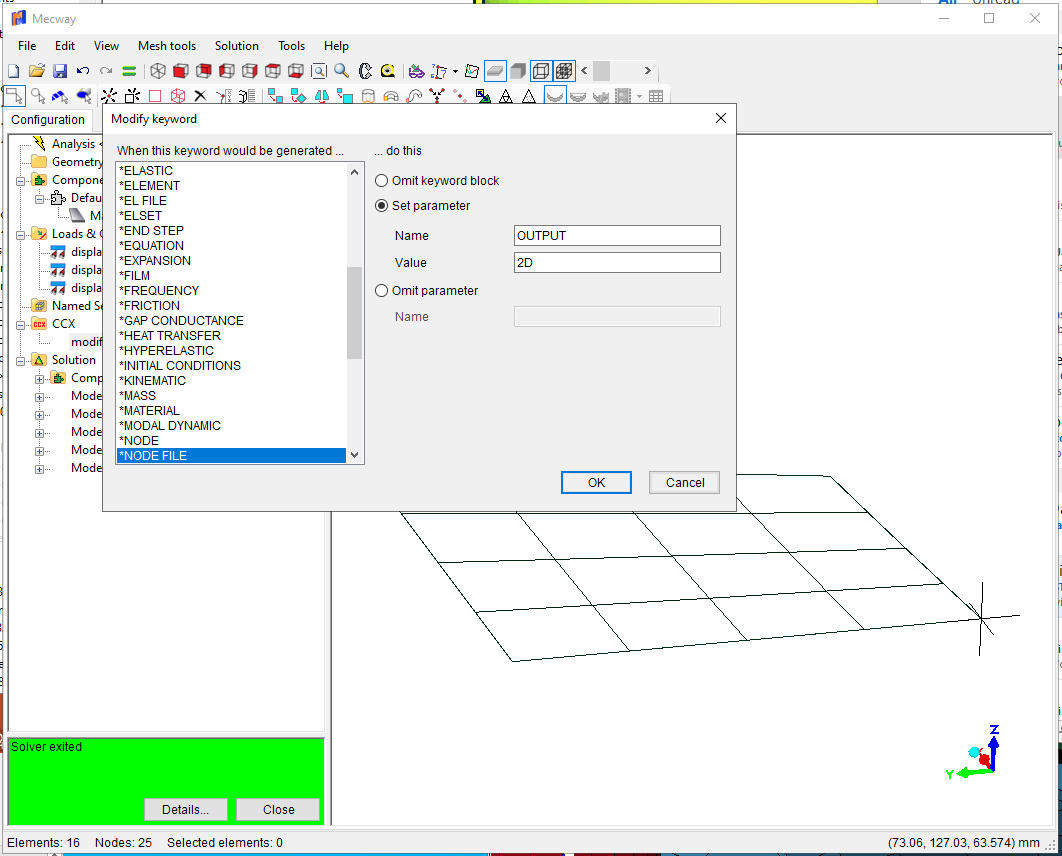

When you want to deform a shell mesh, use this Modify Keyword option, so that the number of nodes in the model matches the solution. This can then be deformed to any scale, and then exported as you like.

Sergio

Thanks @JohnM ! I'm working with the internal solver so this is not a problem, but is good to know also for CCX. That "Modify Keyword" feature is very interesting :-)

kennethfugate

Is "Mesh tools -> Transfer displacements from solution..." what you're looking for? It is in chapter 12 (page 124) of the Mecway manual.
