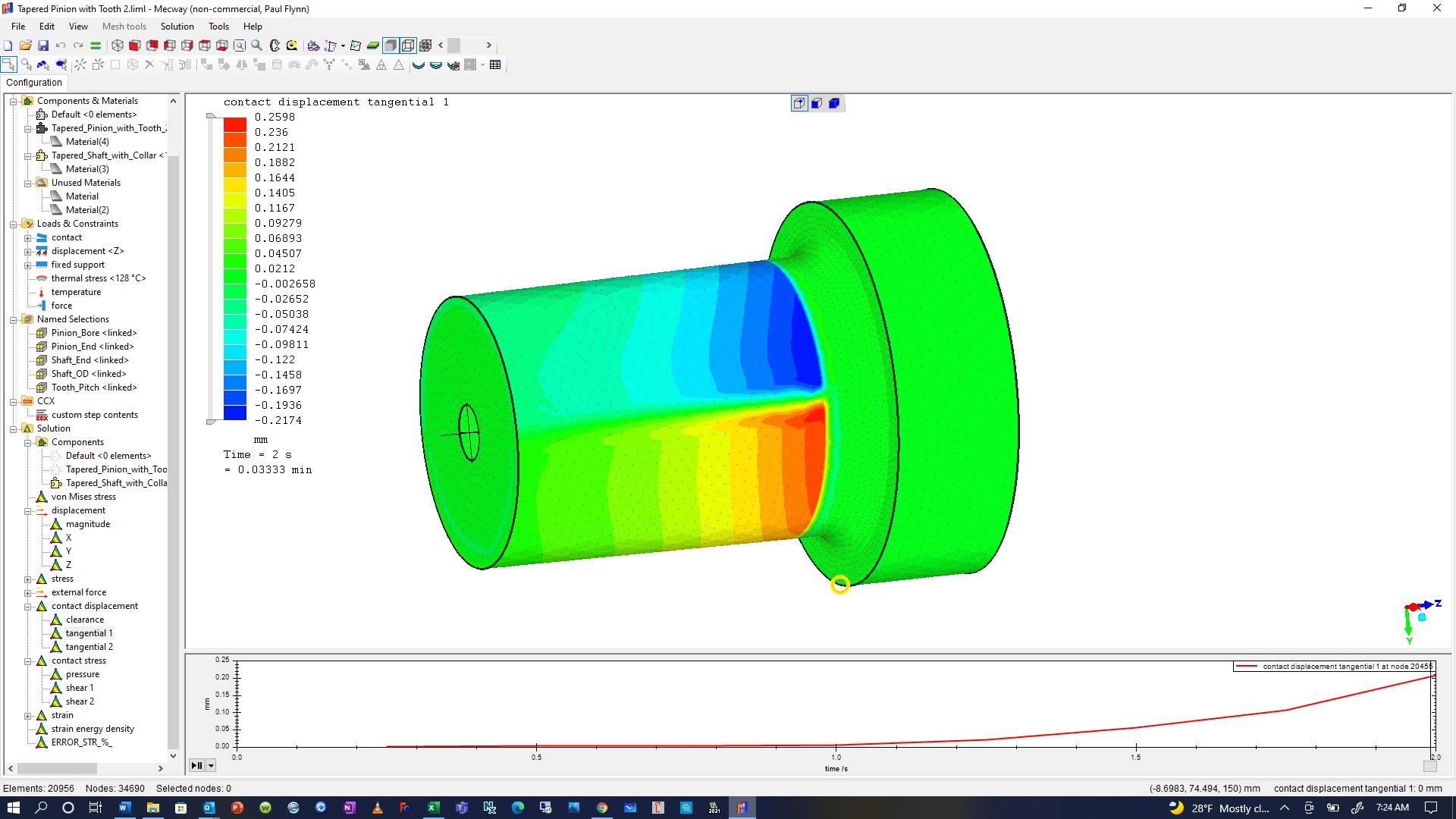

I'm doing a shrink fit calculation on a shaft. The sign of the tangential displacement changes sign when the position crosses the x axis. Is there way to prevent this?
From the CCX manual, the direction of the 1st tangential direction is "the normalized projection of a vector along the global x-axis on the master surface. If the global x-axis is nearly orthogonal to the master surface, the projection of a vector along the global z-axis is taken"
Your sign change happens at the transition between those two cases so I think you could make it smooth by rotating the model so, say, the axis of the cylinder is parallel to X.
Or you could make a formula to combine the 2 tangential displacements into a single displacement magnitude in the plane of the master surface, and that would be independent of the surface orientation.
Comments
Your sign change happens at the transition between those two cases so I think you could make it smooth by rotating the model so, say, the axis of the cylinder is parallel to X.
Or you could make a formula to combine the 2 tangential displacements into a single displacement magnitude in the plane of the master surface, and that would be independent of the surface orientation.
