Issues with Calculix 2.10 under windows

Acero1Acero1
Good day to all,

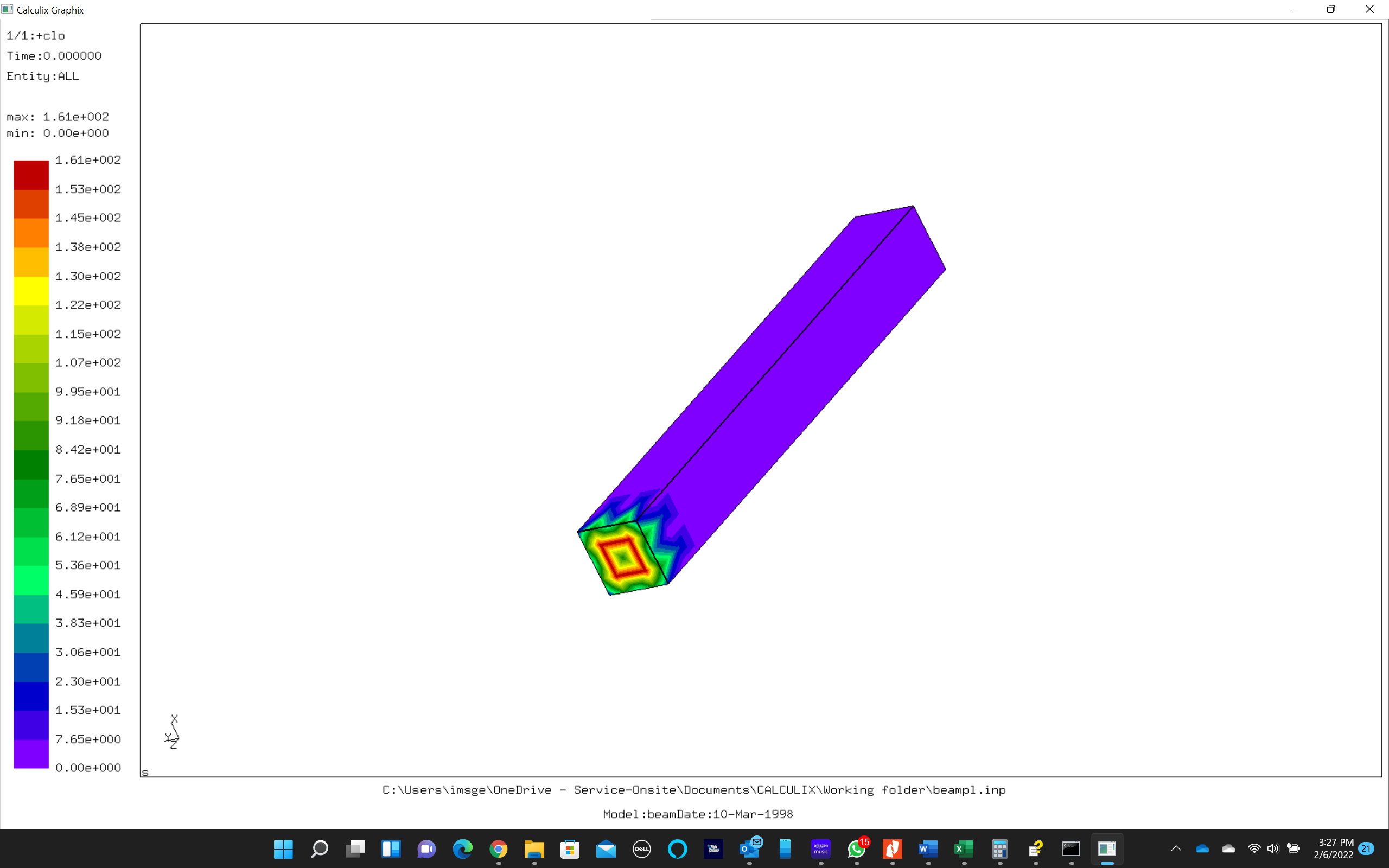

I just installed the 2.10 version of Calculix and during the testing as per the guide, I had a different display of the solution; the image from the one on the guide has concentric rainbow colors along the longitudinal axes depicting the load, the one produced by my "RUN" is limited to one end and the color gradient is only of the small face of the beam.



can someone. help me as to the reason and solution?

thanks in advance

Comments

  • Acero1Acero1

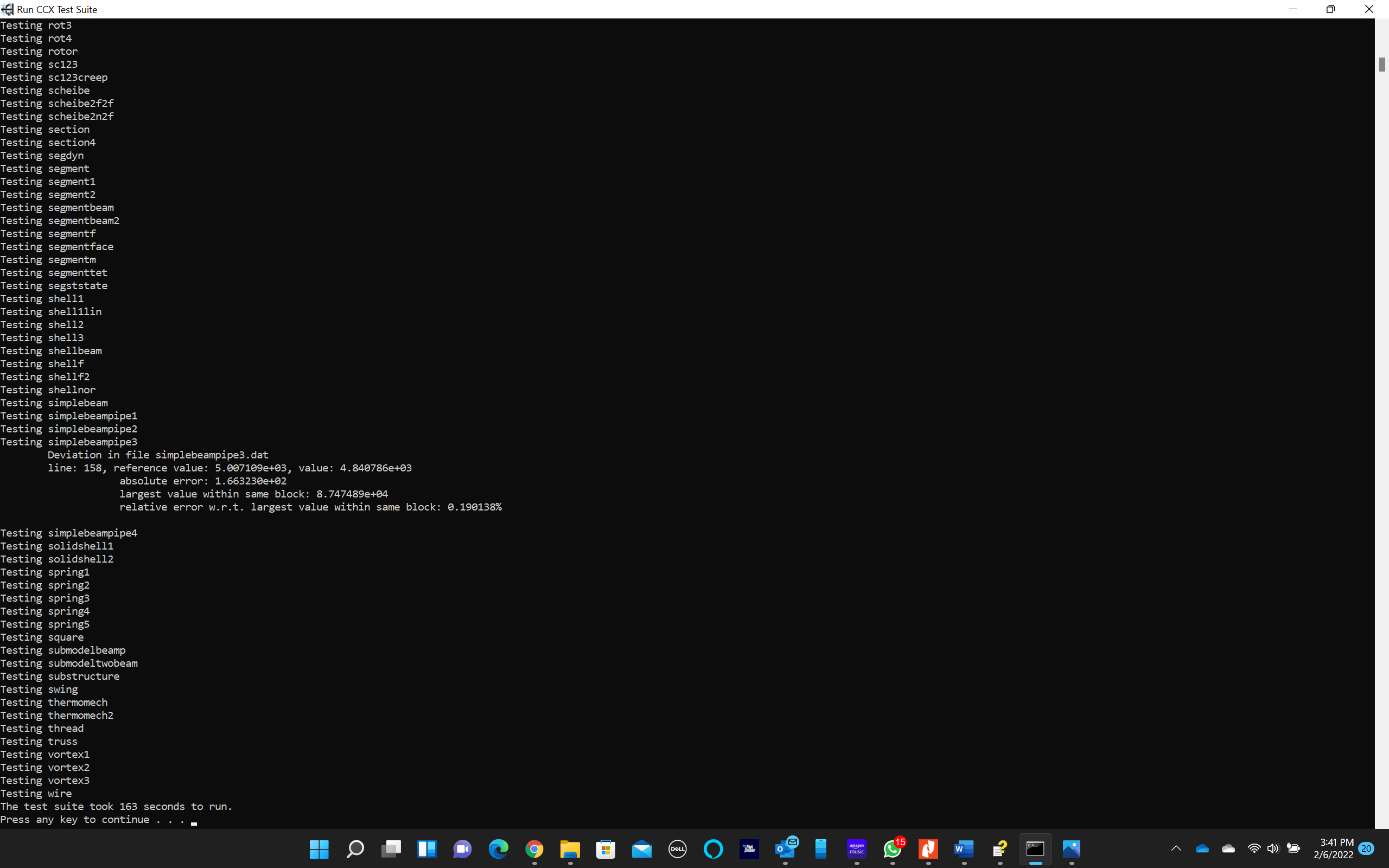

    to add to the previous test results provided the following data:

  • VictorVictor
    edited February 2022
    Are you looking at the same variable? The stress is concentrated at that end and looks something like that, but the displacement varies more uniformly along the whole length.

    Did the solver show any error messages? If it didn't converge, you might be seeing a wrong solution.

    Why 2.10? That's very old now.
