reaction force at symmetric modeling
rhoka
August 2015
edited August 2015
hi All,

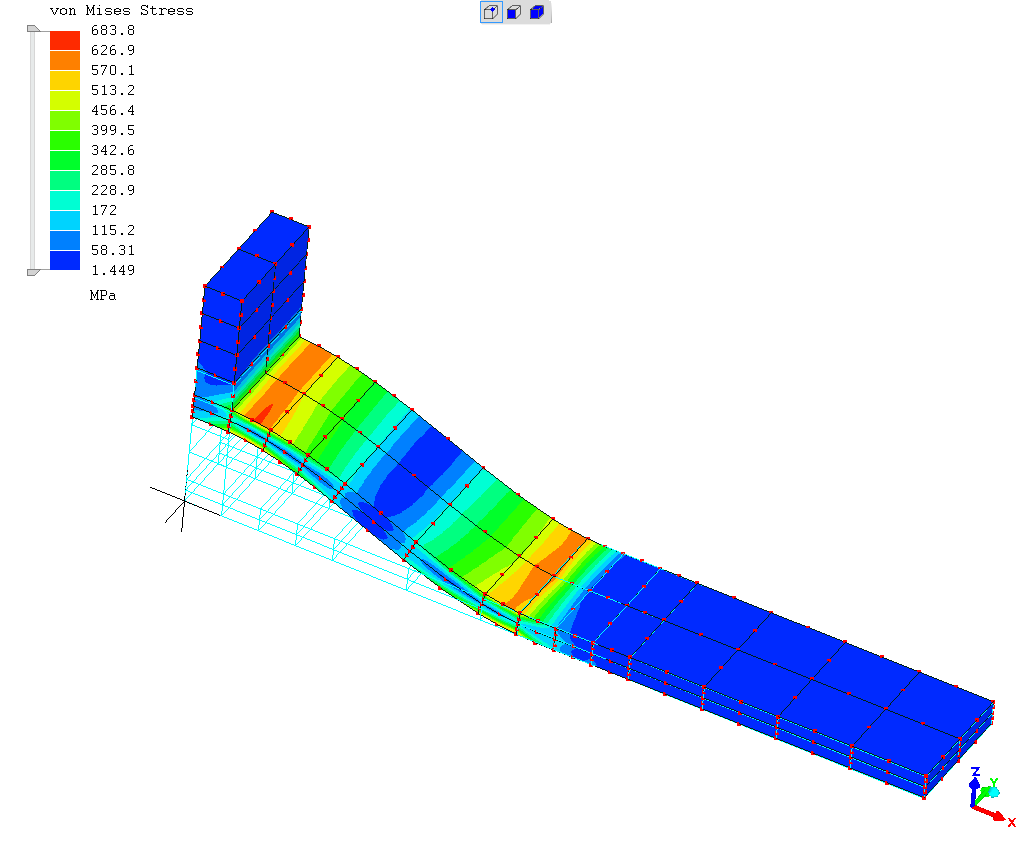

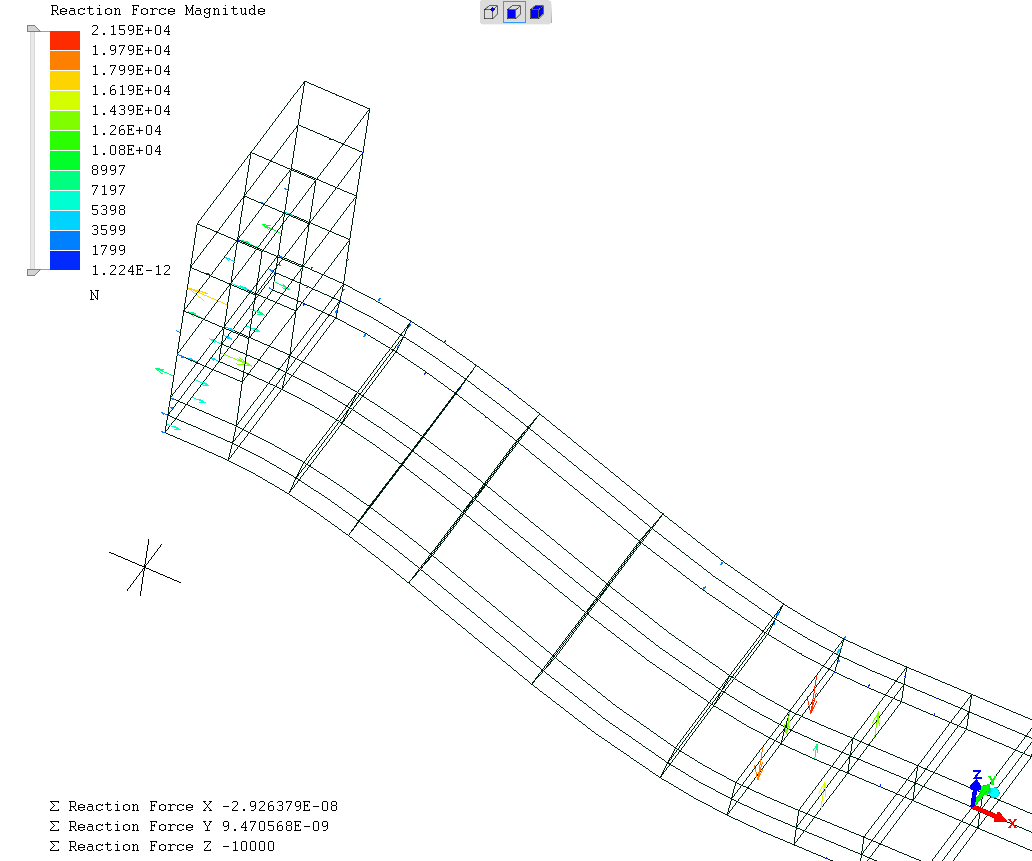

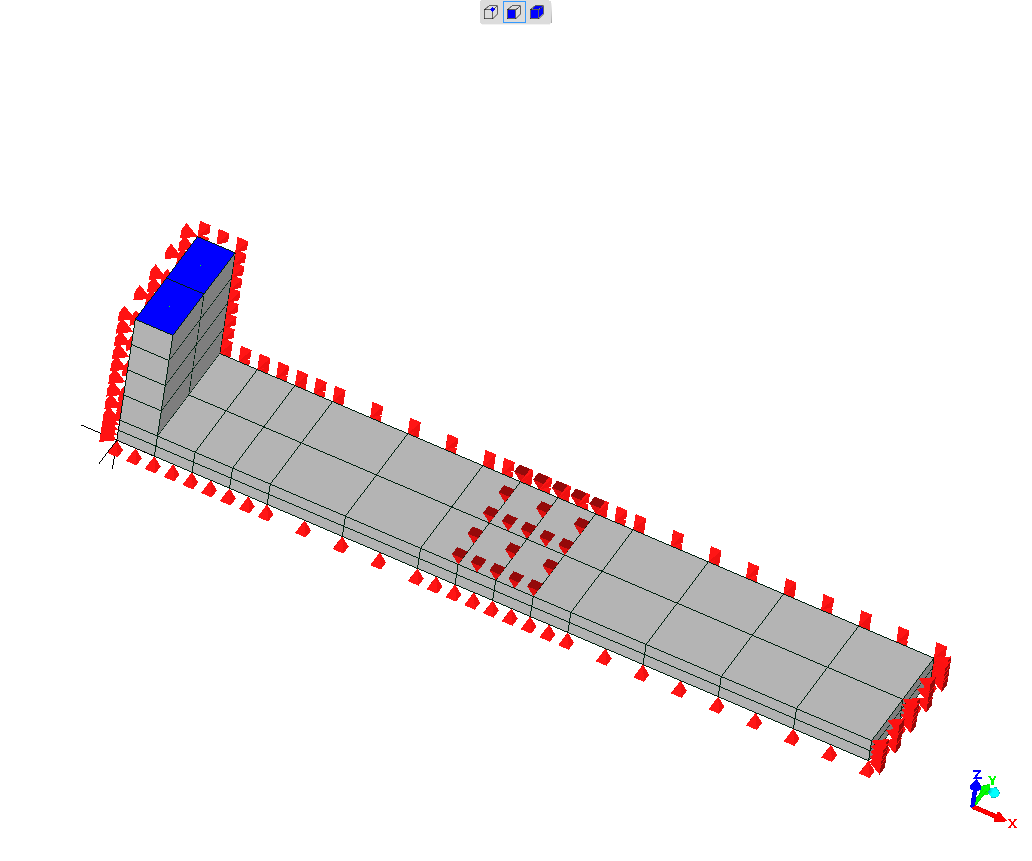

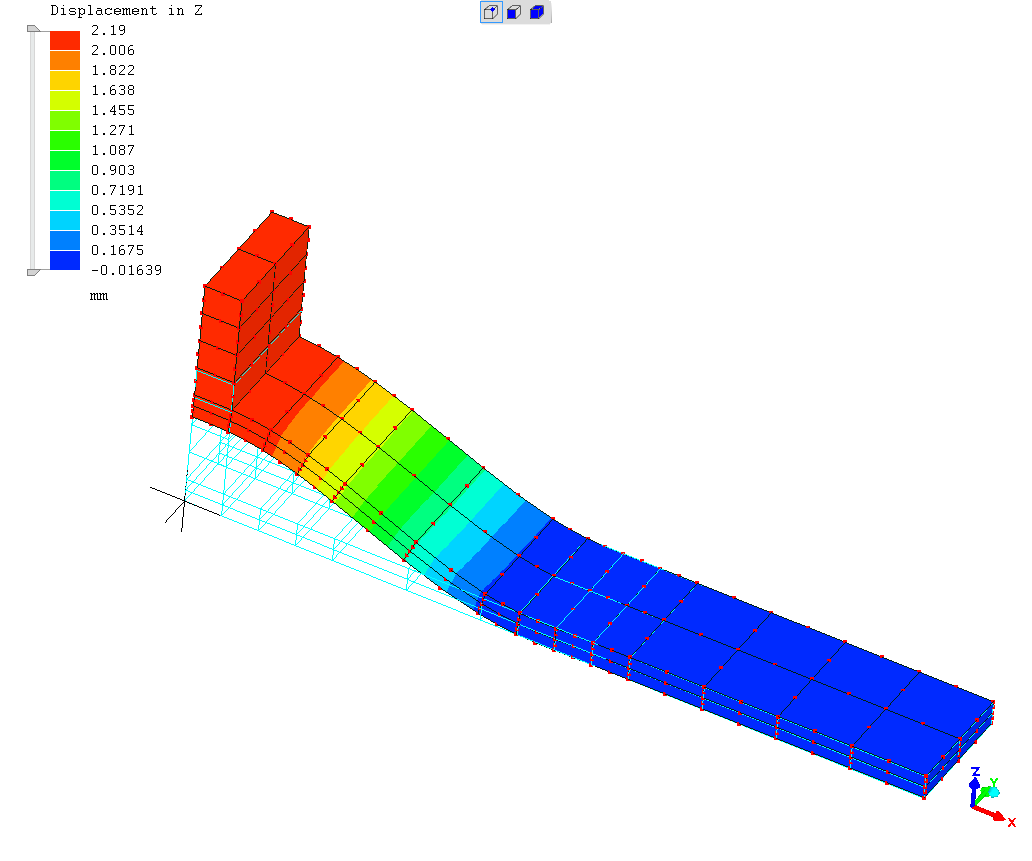

i try modeling symmetric using frictionless support at solid face. the stresses distribution look as expected, not in a reaction force. has shown large values and can not be negligible at these plane. is my model correct?
thank you.
2015-08-11 14_47_13-.png
31.1K
2015-08-11 14_49_14-.png
41.3K
2015-08-11 14_50_46-.png
35.2K
2015-08-11 14_51_07-.png
41.1K
symetric1.liml
735.7K
Comments
rhoka
August 2015
edited August 2015
upss ... i forget about couple of force, please ignoring.

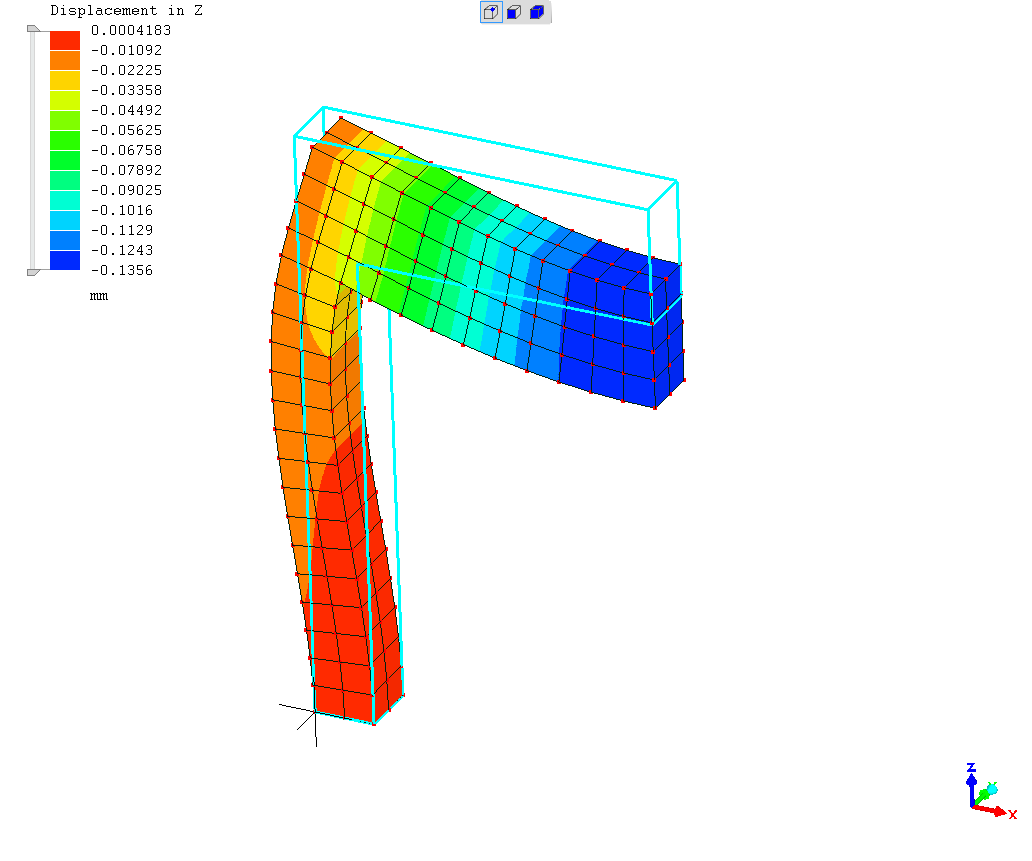

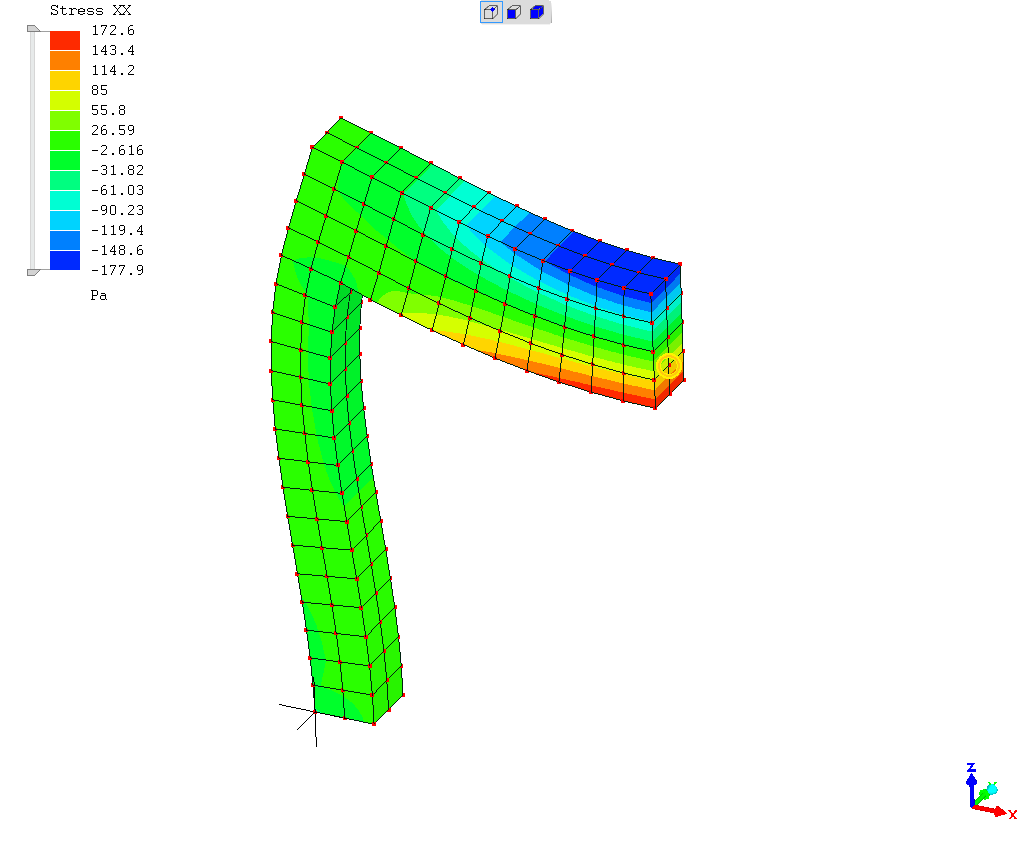

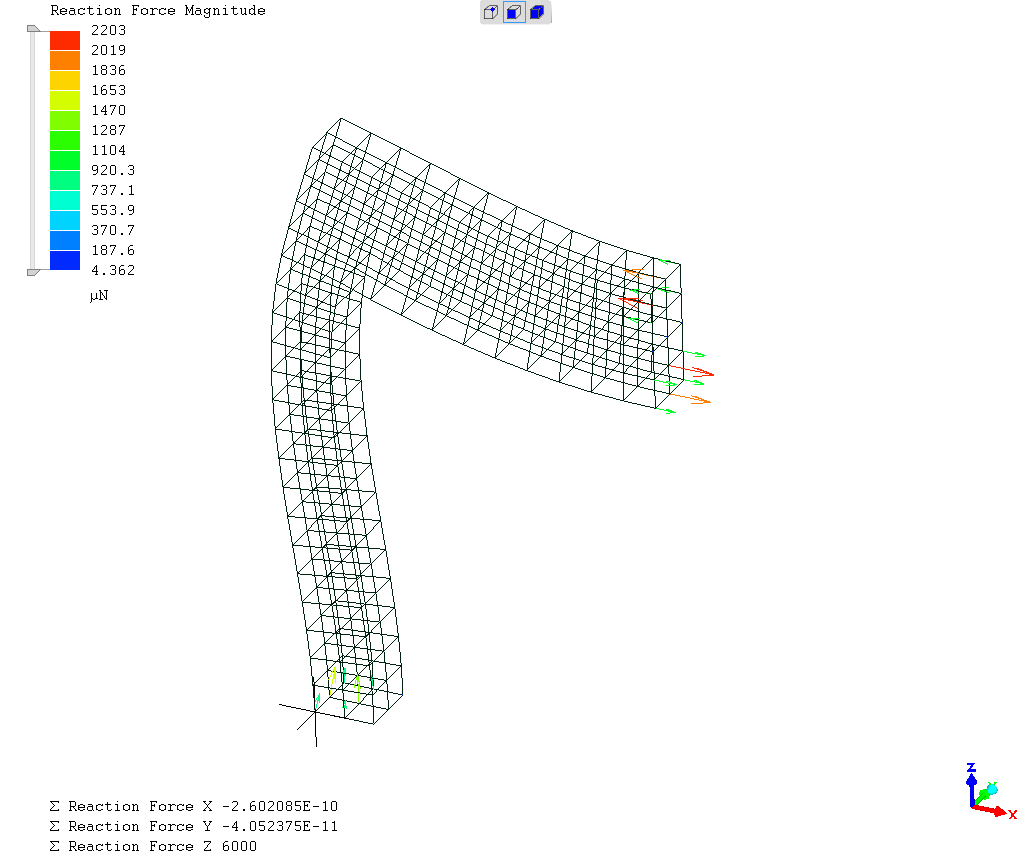

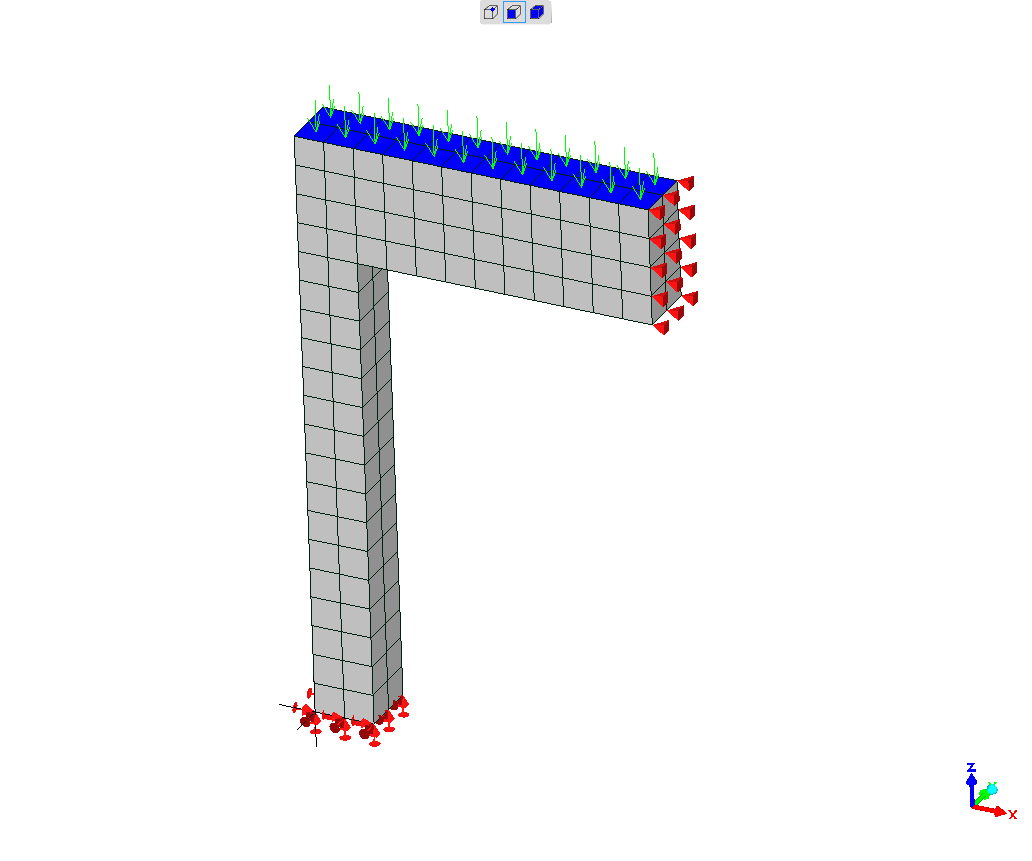

i create a simple case in frame model, this is a couple force and makes bending stress.
2015-08-11 17_35_50-.png
29.8K
2015-08-11 17_36_28-.png
43.2K
2015-08-11 17_38_06-.png
39.1K
2015-08-11 17_36_45-.png
37.4K
rhoka
August 2015

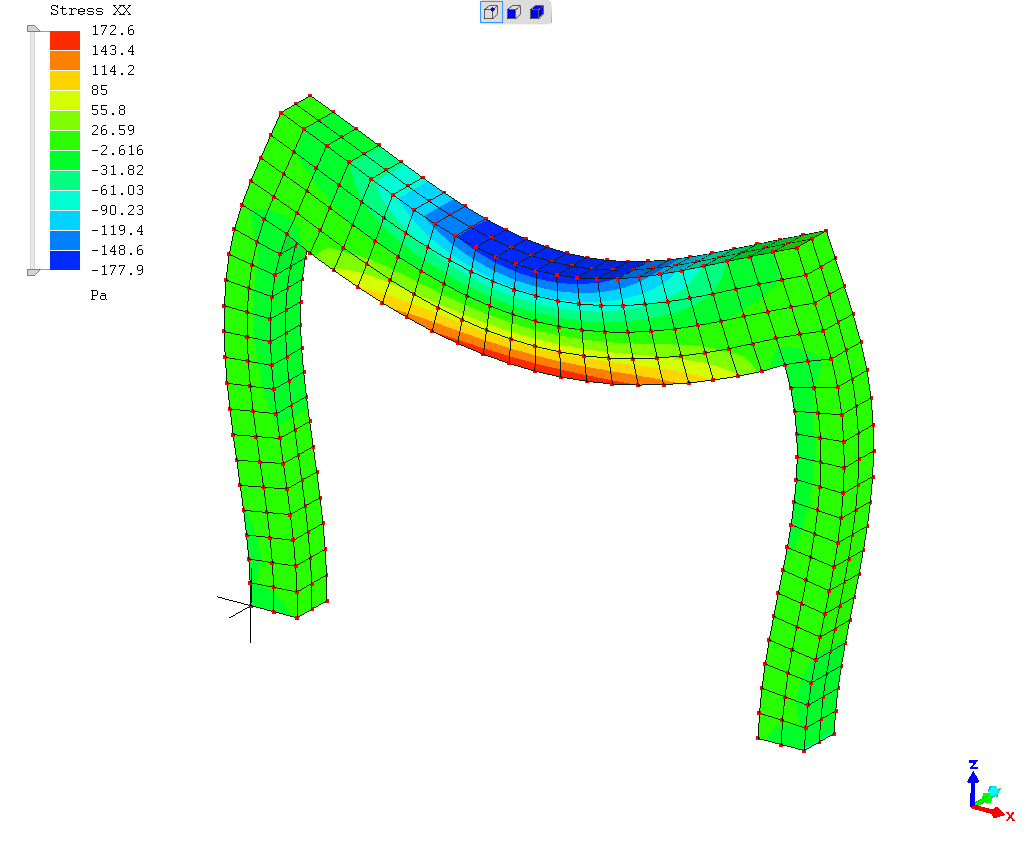

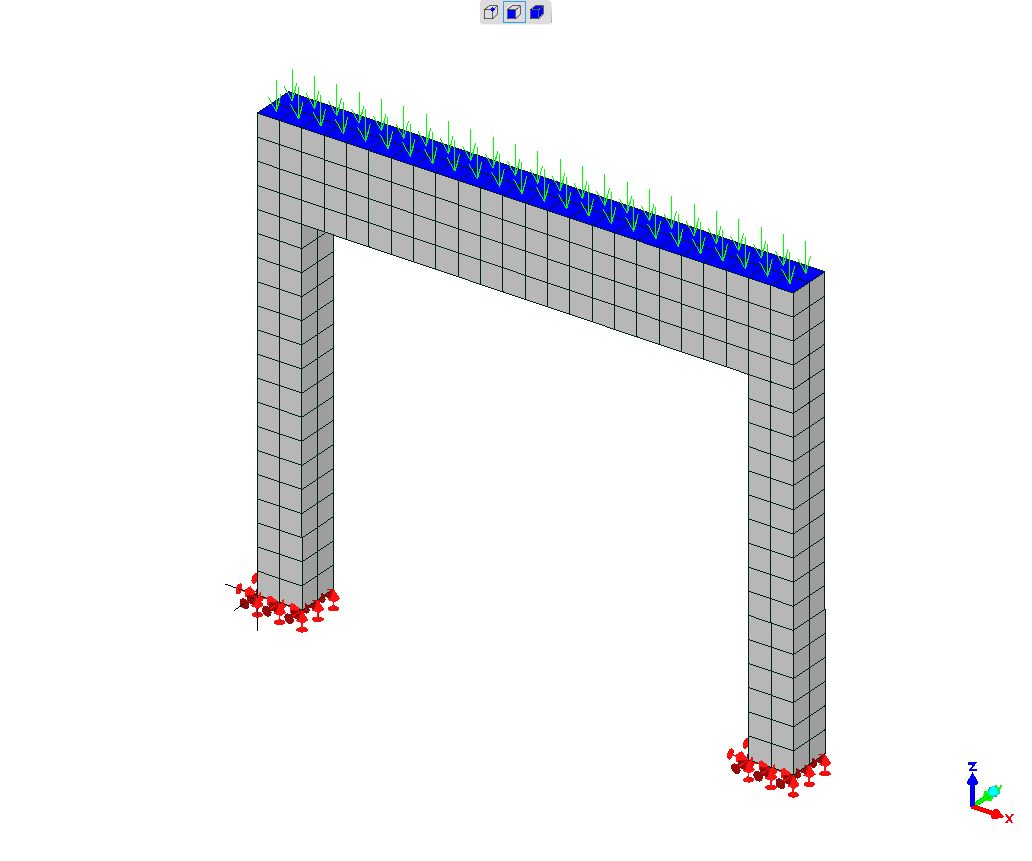

and here's full model of frame before apply plan of symetry model
2015-08-11 18_00_04-.png
49.7K
2015-08-11 18_01_38-.png
44.6K
