OpenRadioss - Mecway doesn´t show stress in shell elements

SergioSergio
Hi, I´running an impact model with OpenRadioss and shell elements, but cannot make it to display V.Misses stress in the shell component. After several tries I get back to the initial model that you post at the begining of the implementation (https://mecway.com/forum/discussion/1531/how-to-use-openradioss/p1) , and the error is the same, no stress in the sheet metal:





Has changed something maybe in the Openradioss output, or the V.Misses stress was never showed in shell elements????

Comments

  • FatmacFatmac

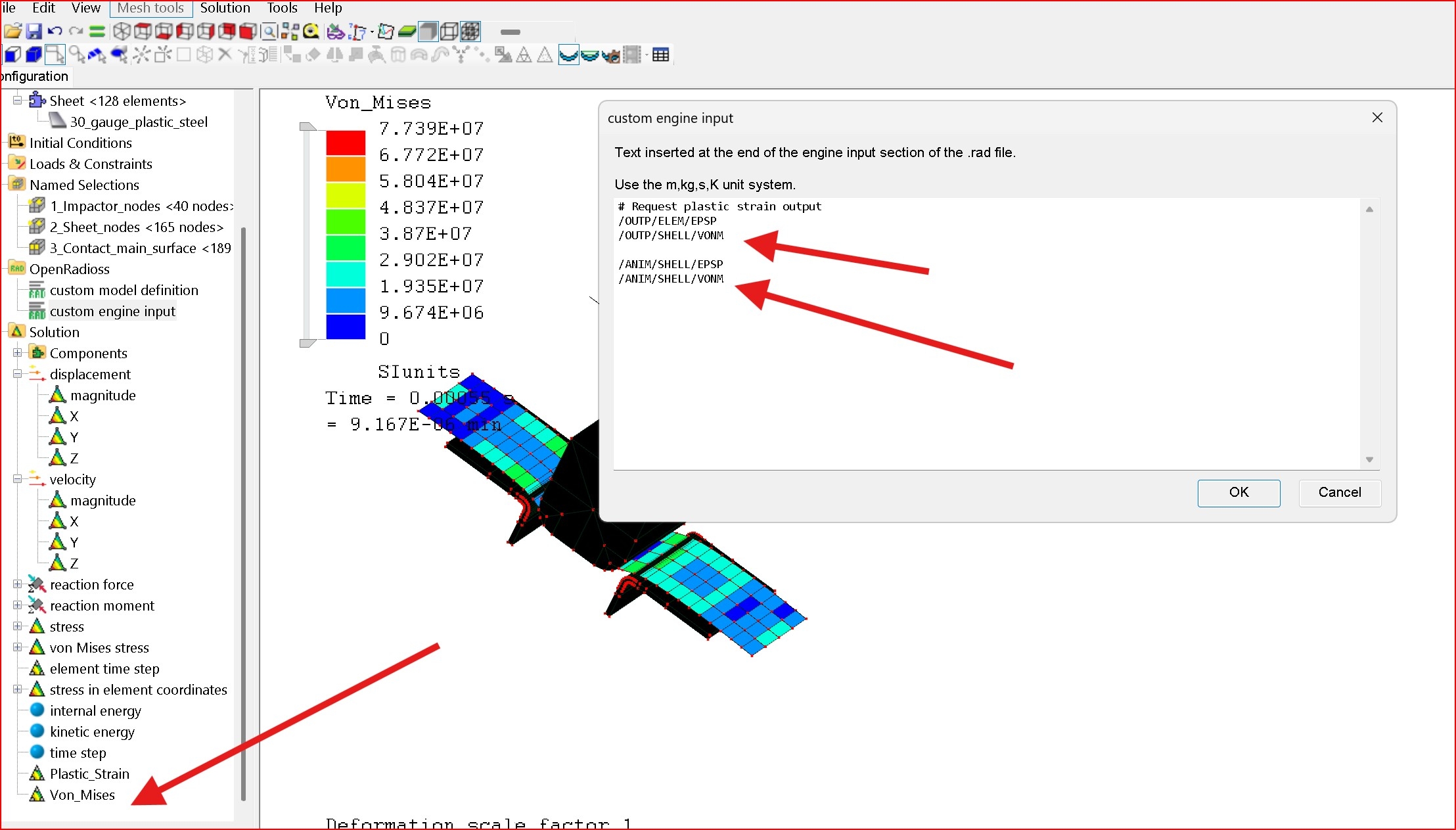

    i had some luck adding some lines to the engine input as seen in the attached pic
