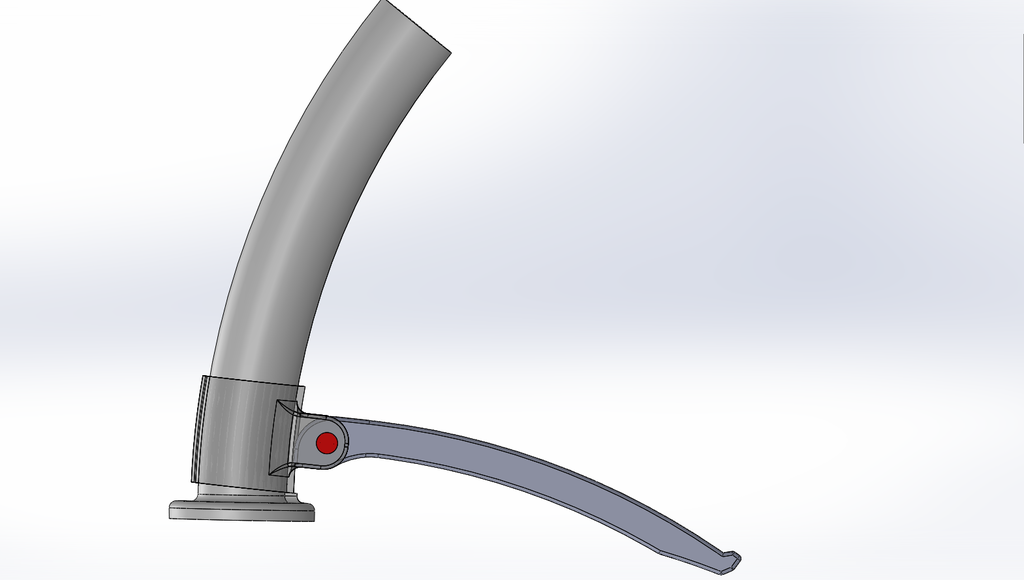

plastic clamp on curved metal bar

SteveMeltonSteveMelton

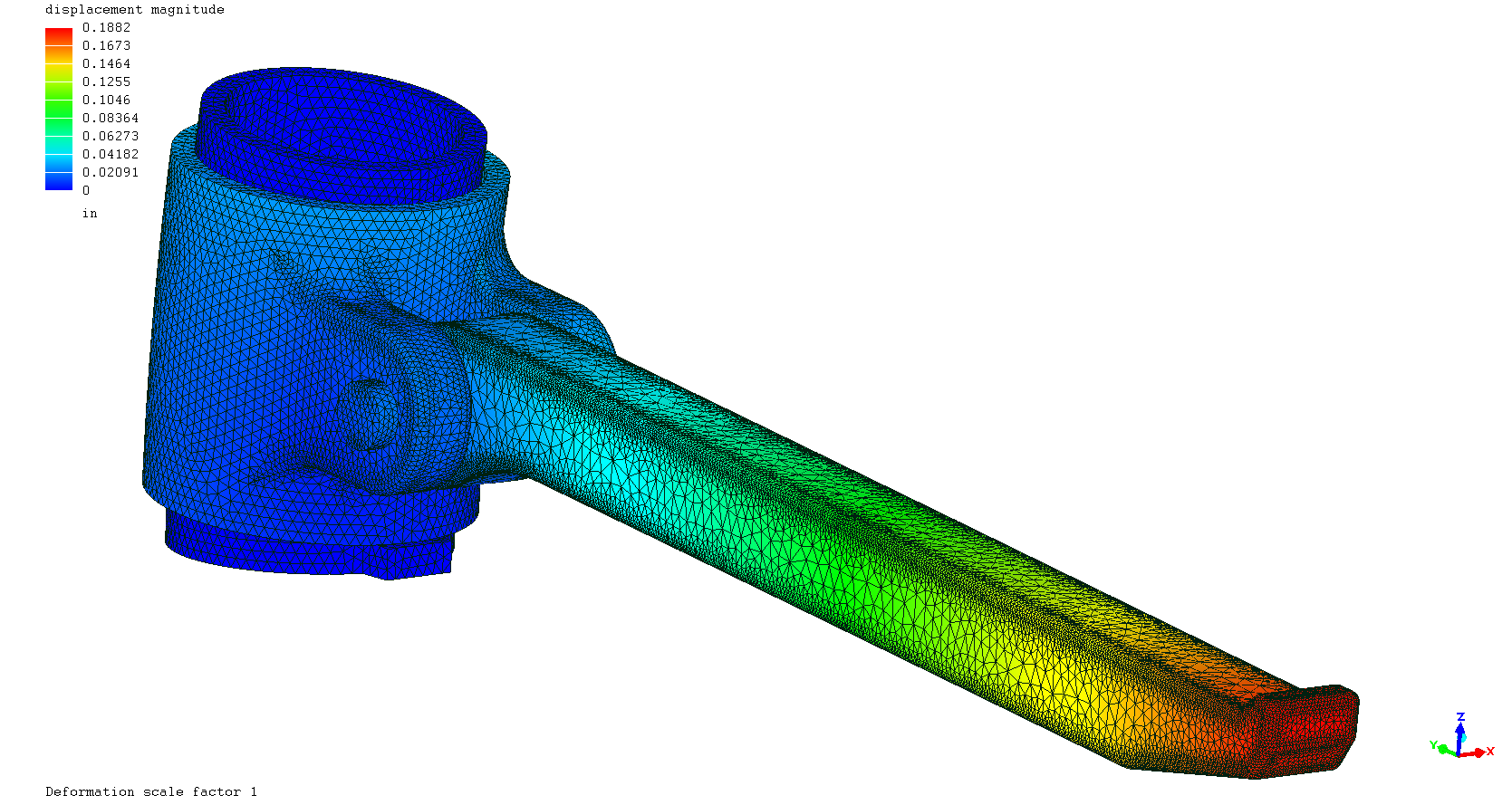

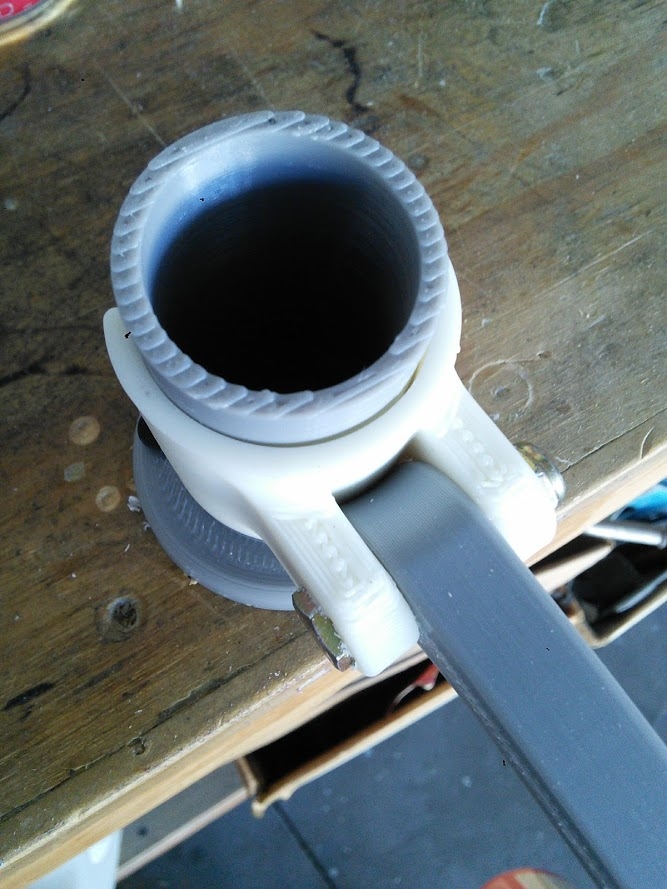

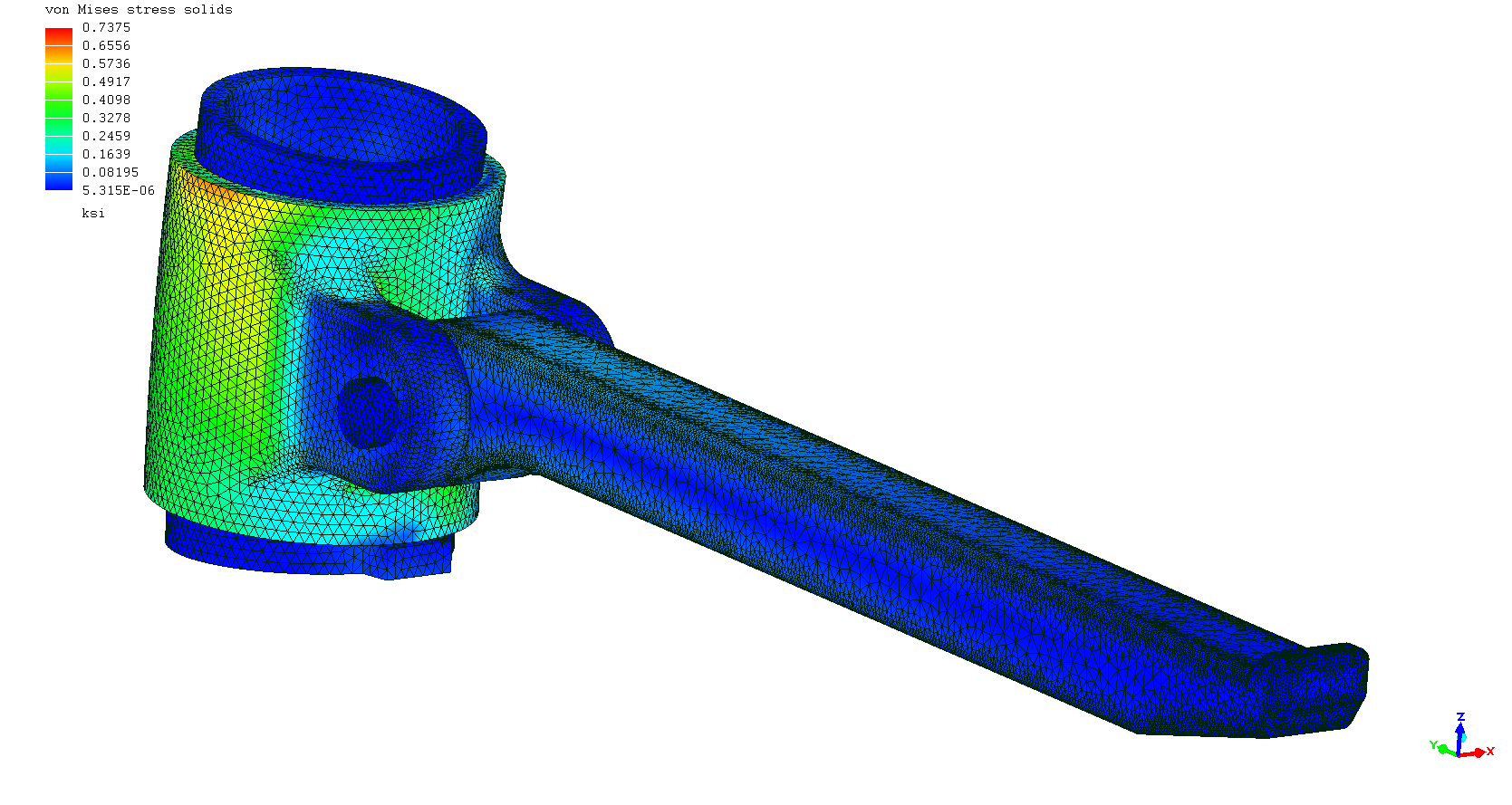

Contacts used a number of places. Installation is to snap clamp on to bar separately and then install the arm. Arm will support 0.5 lb at the tip with .2 in deflection.








Comments

  • davefodavefo
    looks great. how did you manage to get such a good mesh generated?
  • SergioSergio
    I agree with Dave, very nice model
  • SteveMeltonSteveMelton
    edited October 2018

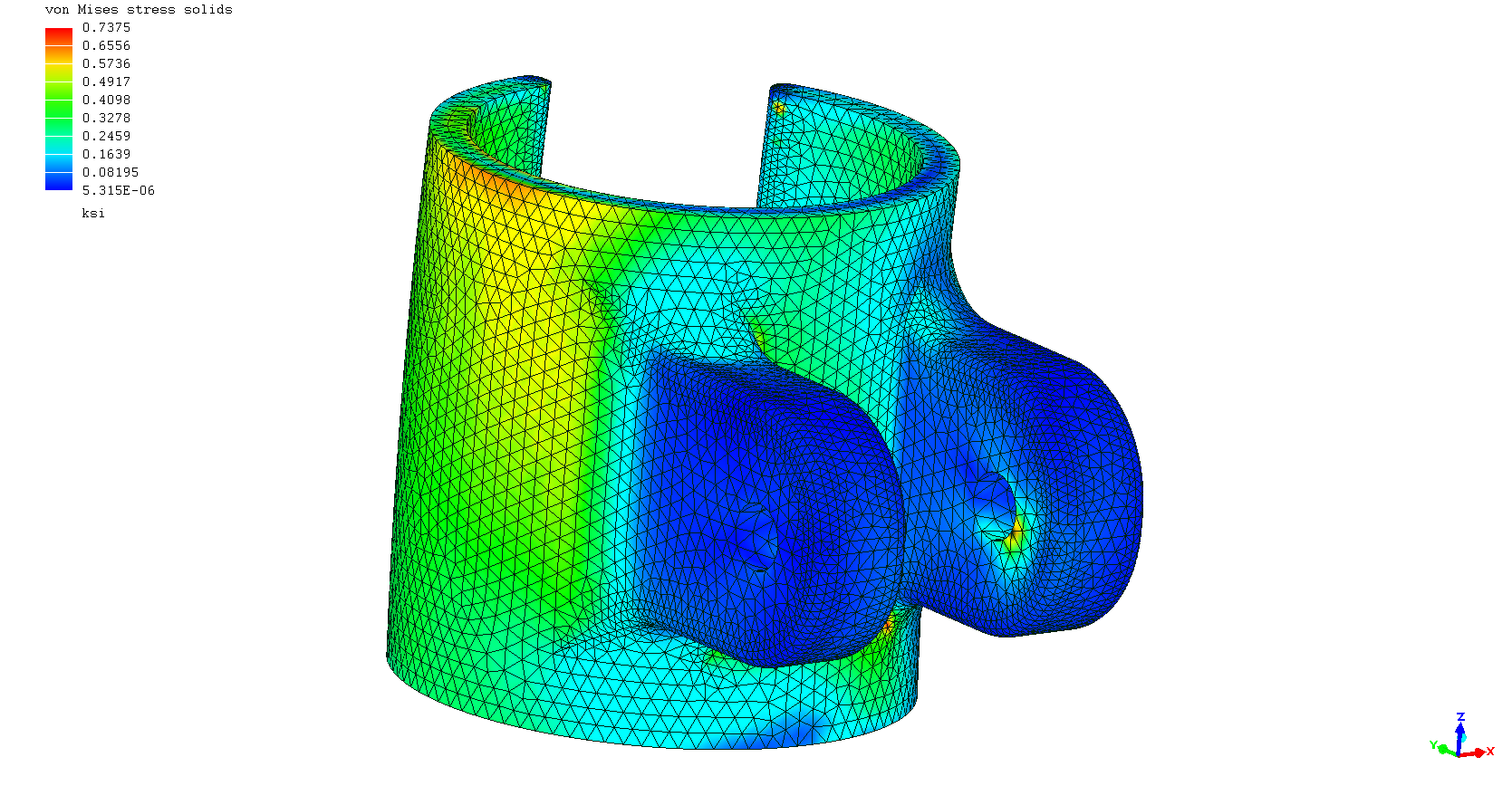

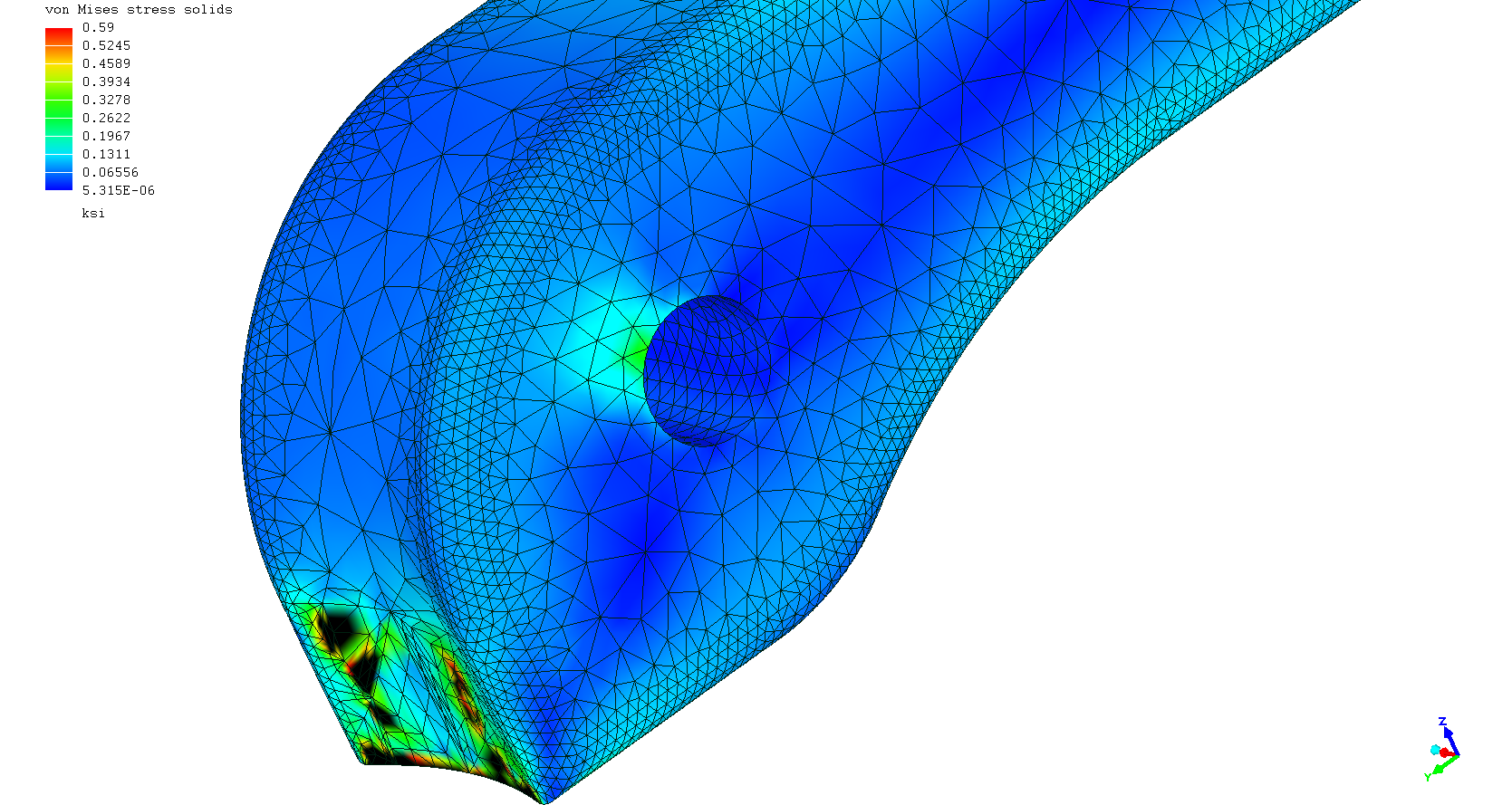

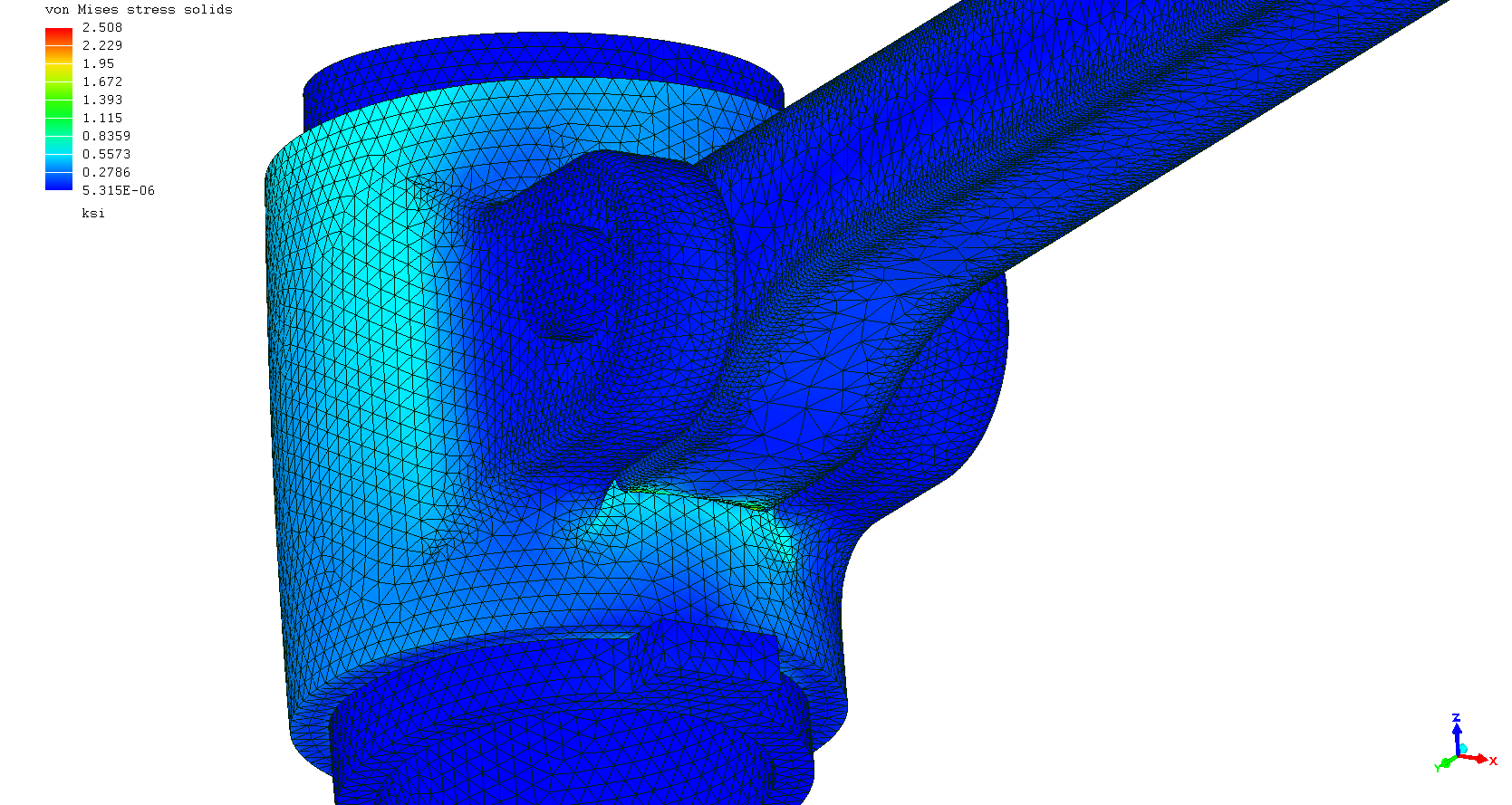

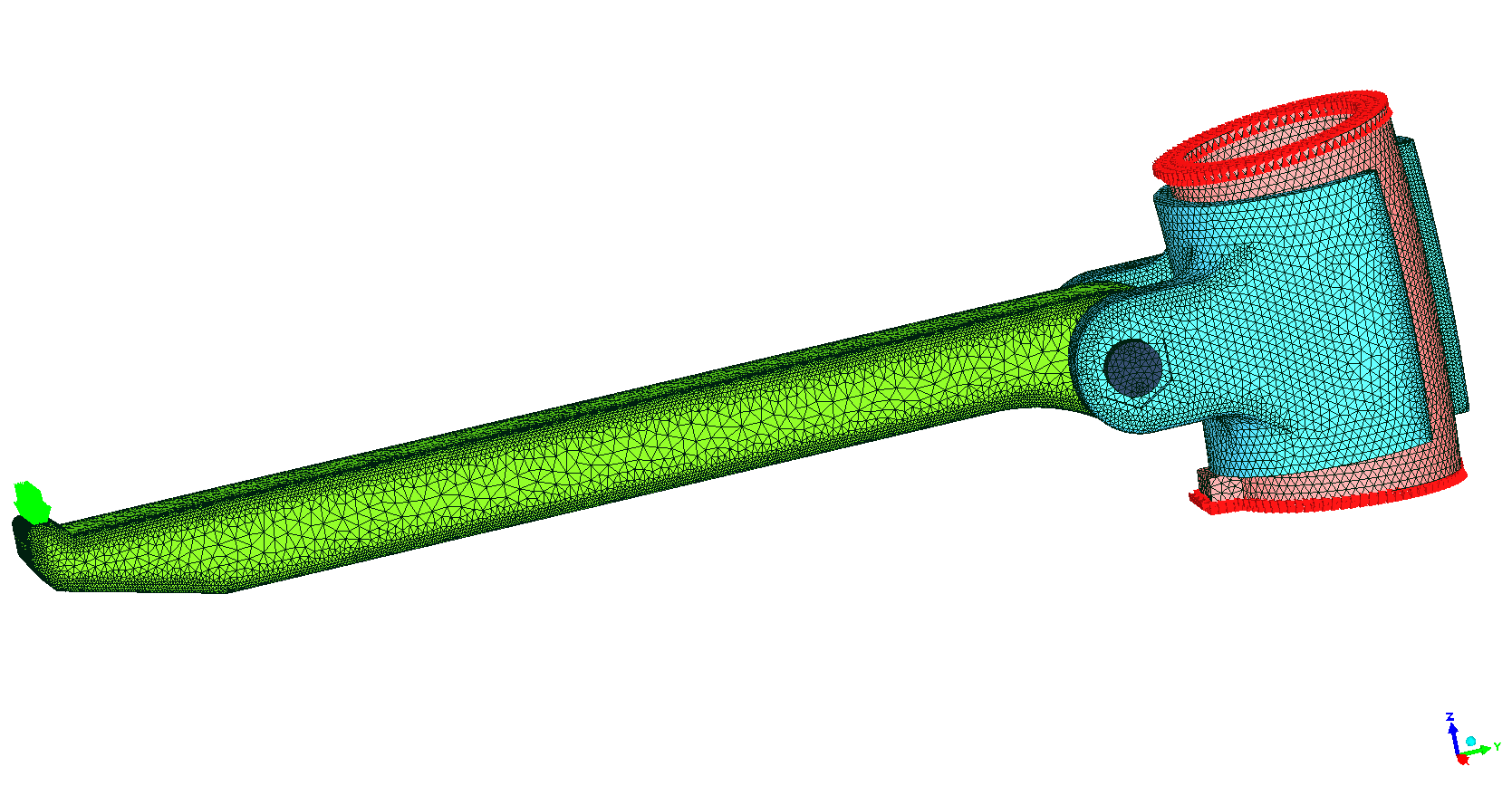

    that's automesh of a STEP file with x2 mesh refine using paint at the arm to clamp contact. quick and easy. solves in less than 30 minutes. a couple of things going on here, one, the arm to clamp interface and two, the peeling of the clamp from the bar.
  • disladisla
    Hello Steve.

    “a couple of things going on here, one, the arm to clamp interface”.

    ¿Which kind of contact are you considering.? I think you didn’t merge nodes as it looks like a free clamp that could open or slip but ;
    ¿Isn’t a phisical gap between the two components needed for convergence?.
    ¿How did you managed? ¿Only compression maybe?

    Any information you could provide would be appreciated
  • SteveMeltonSteveMelton
    edited October 2018

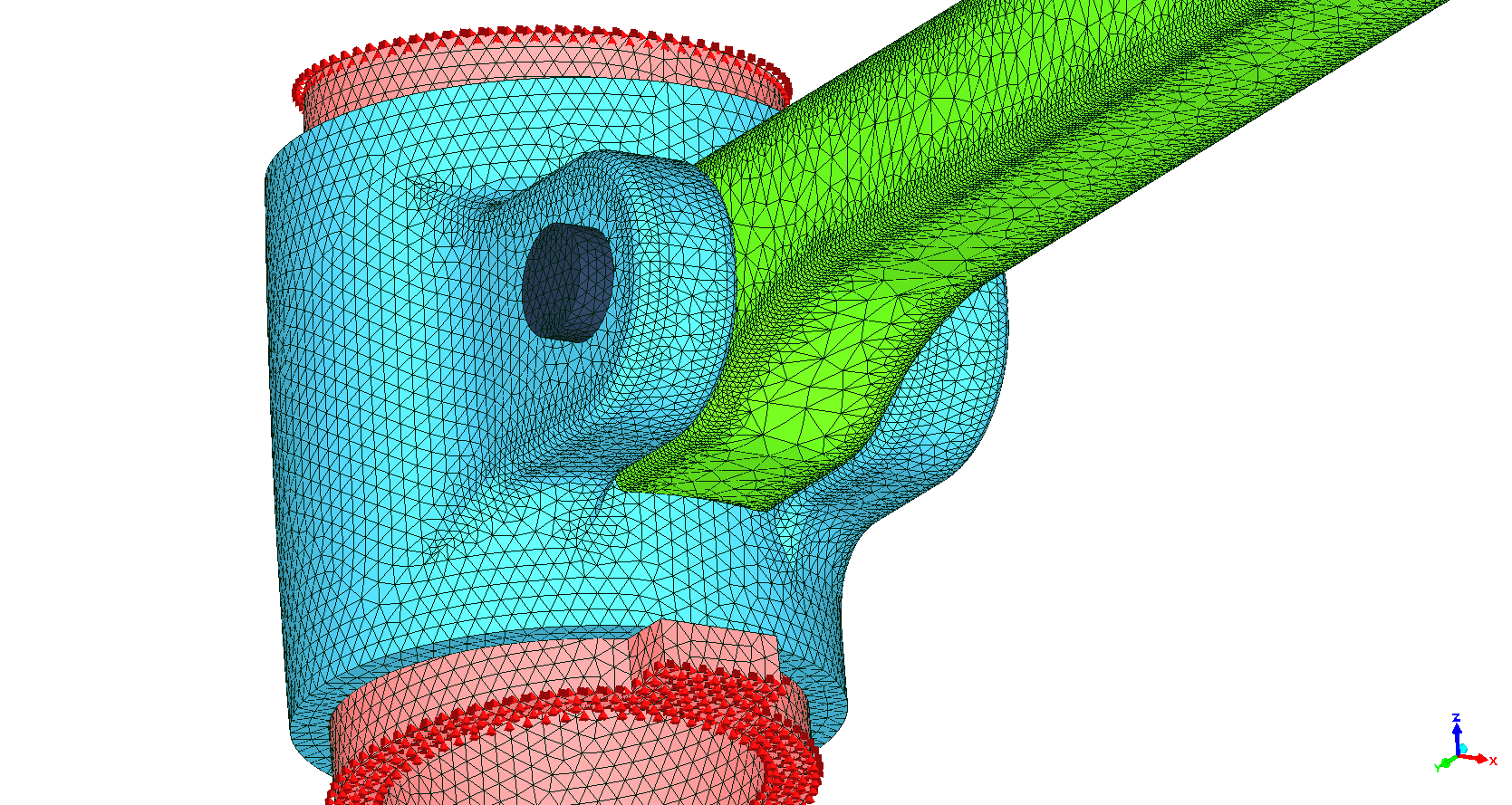

    3D non-linear CCX. Nine contact surfaces. Each part is separate, clamp, arm, pin, bar. the pin has a .002 inch gap on the diameter, others are no gap. start with a small load. if the deflection is too much it cannot converge.
  • disladisla
    Thanks for sharing your experience with us.
  • SteveMeltonSteveMelton
    edited October 2018

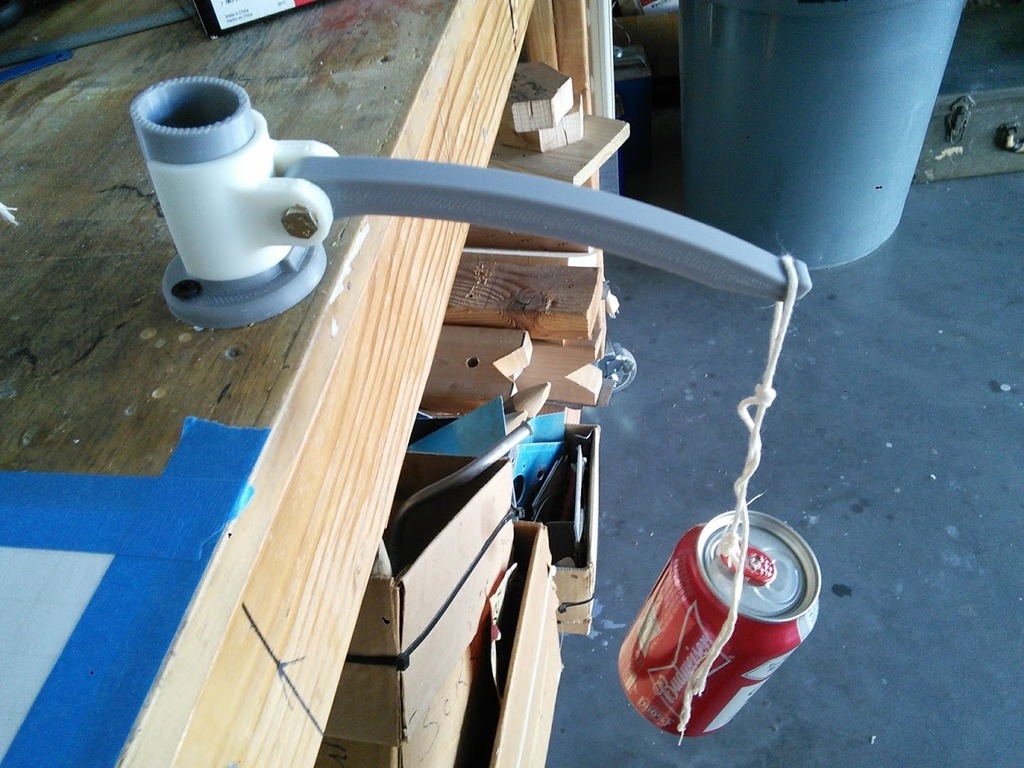

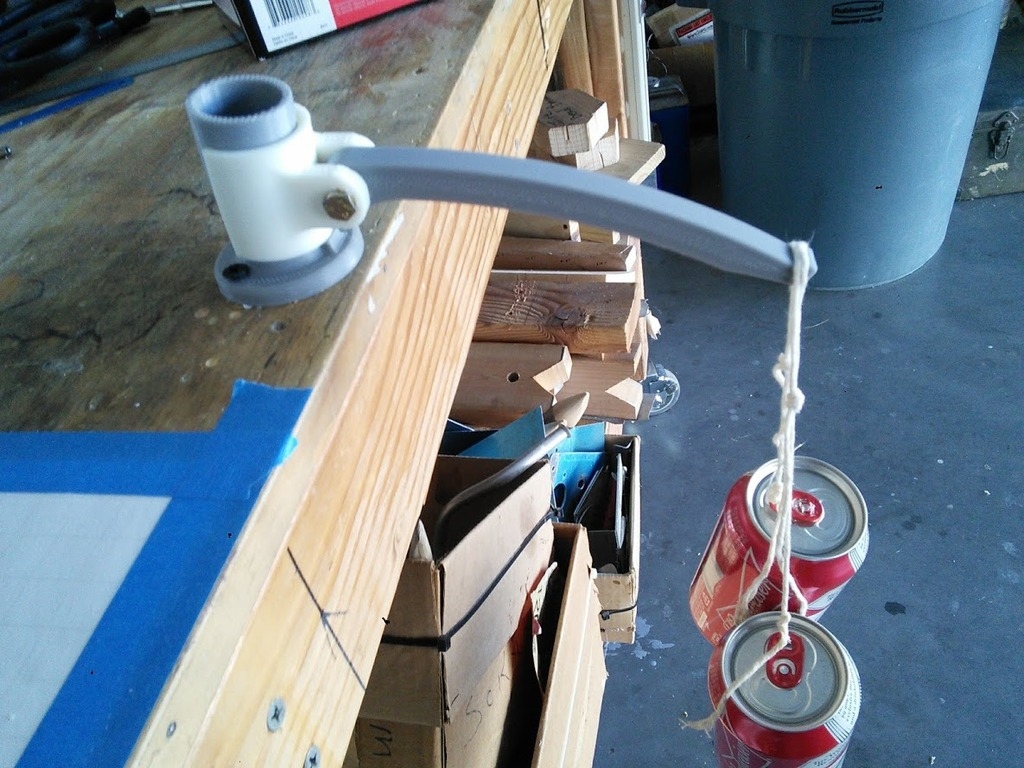

    spot on deflection, validated! :)
