Dear Sir,
I am totally new to Mecway . And interested in knowing whether Mecway has a plastics materials data base which can be used for assigning the material properties and carry out the large deformation analysis .
I am totally new to Mecway . And interested in knowing whether Mecway has a plastics materials data base which can be used for assigning the material properties and carry out the large deformation analysis .
Howdy, Stranger!
It looks like you're new here. If you want to get involved, click one of these buttons!
Comments
For large deformations, you need to install the CalculiX CCX solver available here http://bconverged.com/download.php . Then connect it to Mecway through Tools -> Options -> CalculiX.
I am a researcher working on plastics parts behaviour under forced vibrations at elevated temperatures. I am curious to know how Mecway can help in optimising shapes / Sections of plastic molded assembly of parts. Normally their are three to four parts for a assembly . For example multimeter box or door handle etc. In case you have a example or case study pl let me know .
Regards
Drssp
I have one more question.
Is the mesh generation module ngmesh is 64 bit version?
Also in case mesh nodes are more than 1 million what happens to deck while solving.
Regards.
Drssp
http://www.4pingenieria.com/pipping/
Once you catch the workflow will find easier than other FEA packages.
Regards
In my industry (rubber parts) good meshing is a must for achiving accurate results in razonable time to solve. That's why I feel a little confuse when I heard about such terrible quantity of elements. New people in FEA tend to replace good meshing skills (as geometry simplification, feature deletion, simetries...) with simple direct element size reduction, but normally that´s not the answer or the best for a good analysis. Worst thing sometimes is when somebody try to estimate the accuracy or power of a solver or FEA package with only the number of nodes he can manage... I don't know, after years in the matter there are other things more important than just to know if X solver can manage 10^6 elements or if Y solver can manage 10^7. Best paramaters to me are if can I apply all the boundary condition that I need? Support multiple steps, multiple contact, specific material models? And the more important... can I pay for that software???
Best Regards!
Your tips will help me to pick up faster.
can I use multi threading during number crunching while using Mecway solver?
This will help to reduce the total time during getting trained on some of the complex plastic parts.
I observed that in my system, the cup usage is always less than 13 % and memory is less than 17% .
Thanks and regards.
Drssp
Have finished succefuly a first run on the insertion operation, will try to run also the opposite direction to see how it performs. Tomorrow will post some nice pictures.

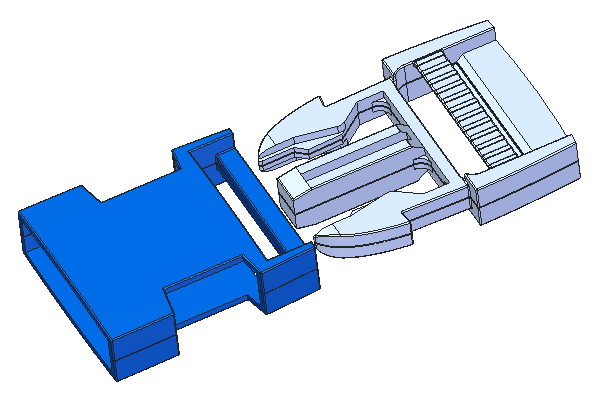

I has removed all the small radius and features that don't affect the simulation, and then cut to have an equivalent quarter of the model. With this two simple things you can decrease the size of the model by maybe ten, small finishing radius would take a lot of elements and add distortion to the mesh. I have let only radius in the stressed areas (have done a preliminar test before to see were I need to refine the mesh), also mesh refinement there and in contact zones.

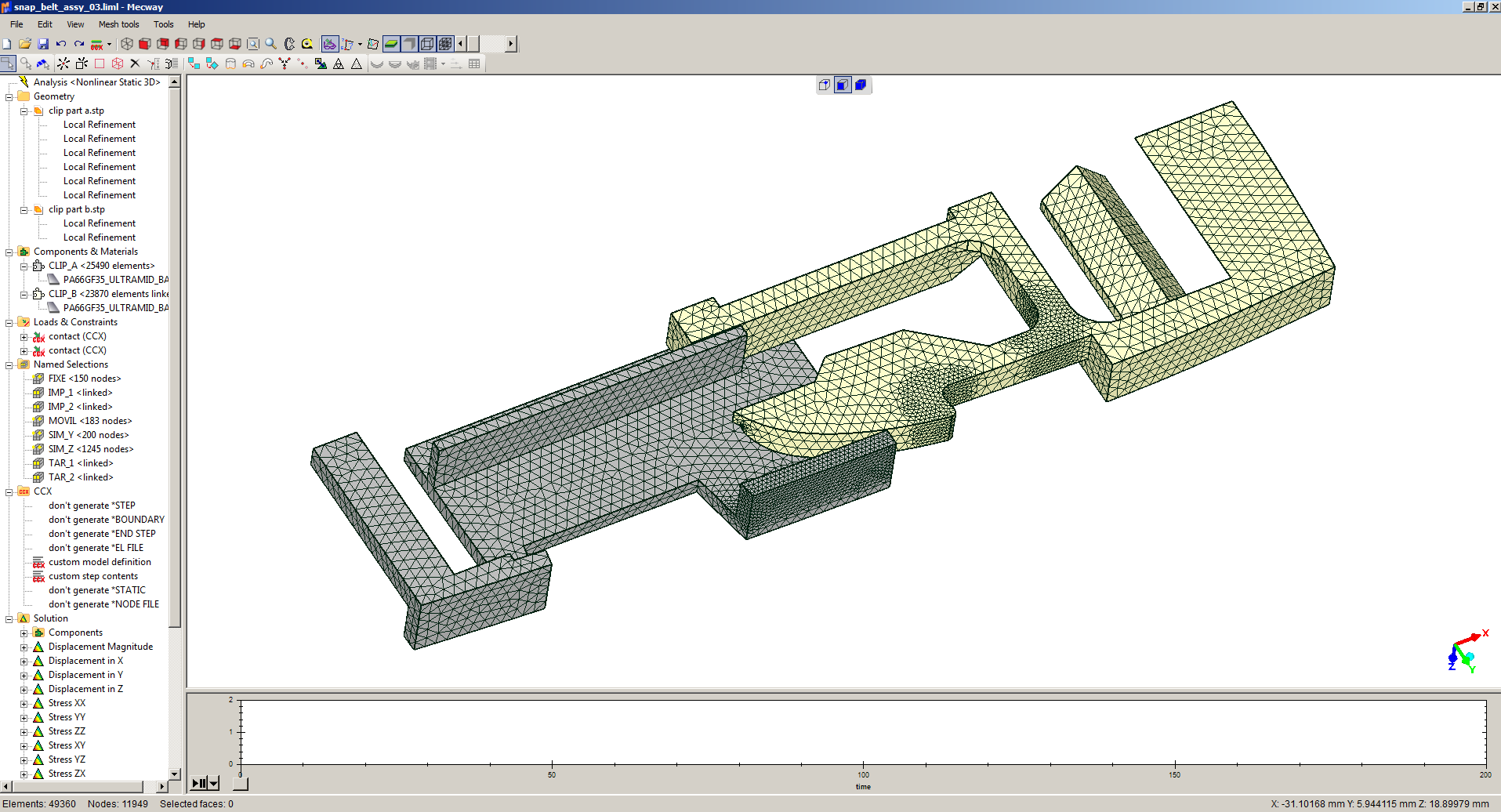

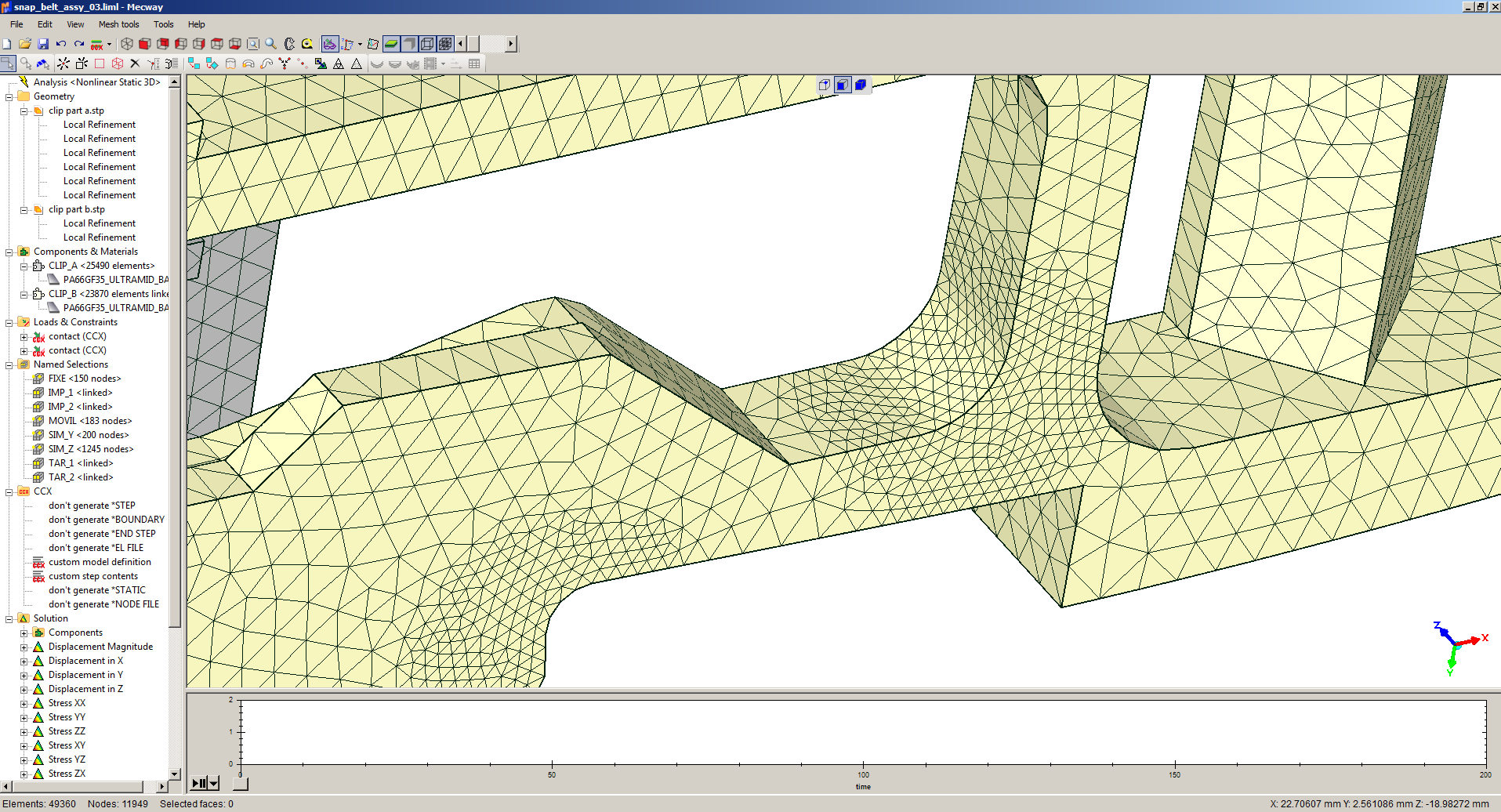

I have finish with a very well shaped mesh (didn't find a way to check the quality yet, but looks well), with 49360 elements and 11949 nodes.
I have applied a PA66GF35 material (Ultramid, a very good reinforced polyamide from BASF), contact and drive the simulation by displacement (normally solvers perform better aplying a displacement than a load). Two load steps were defined, one for assembly and the second for traction force.

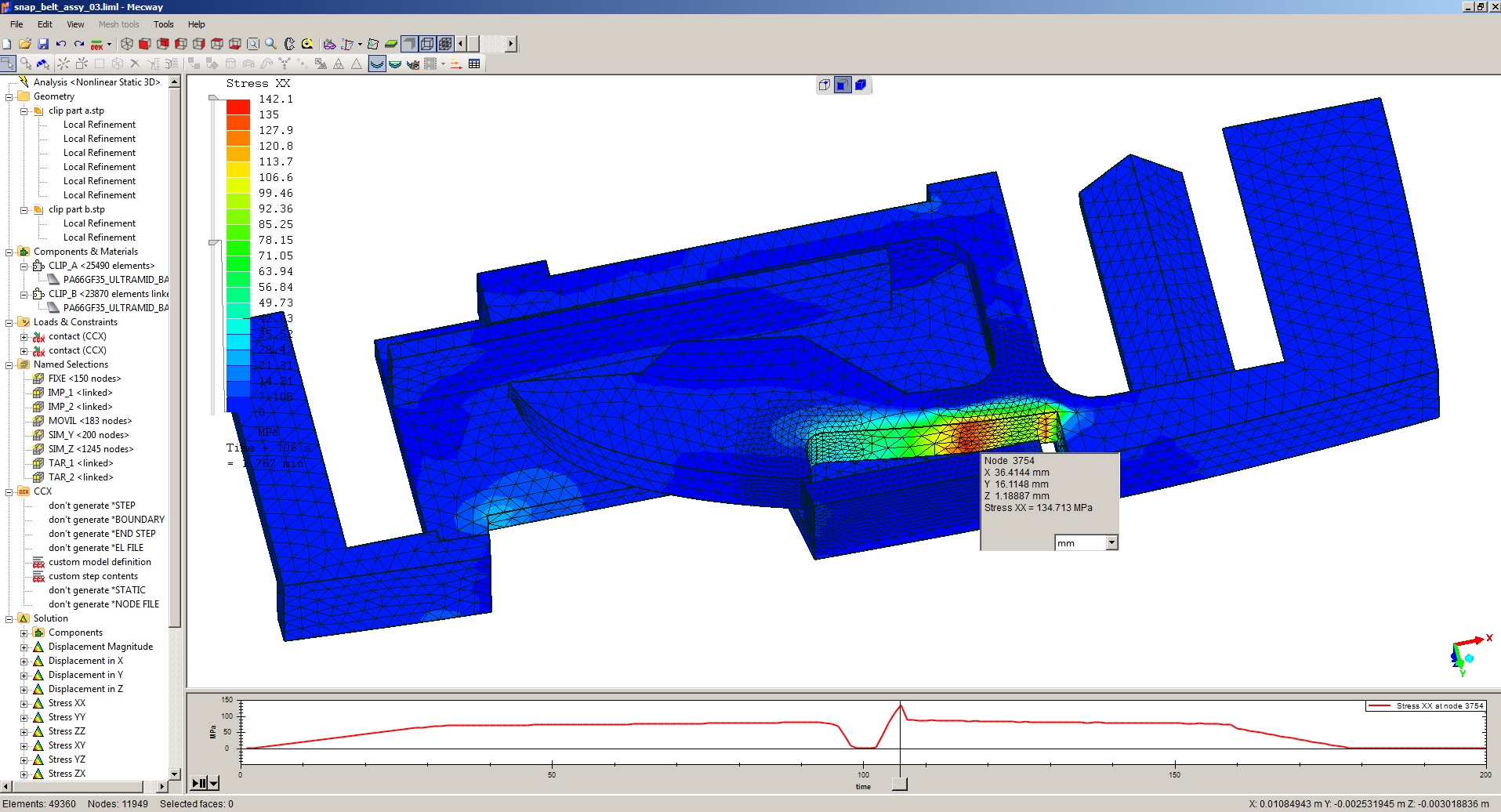

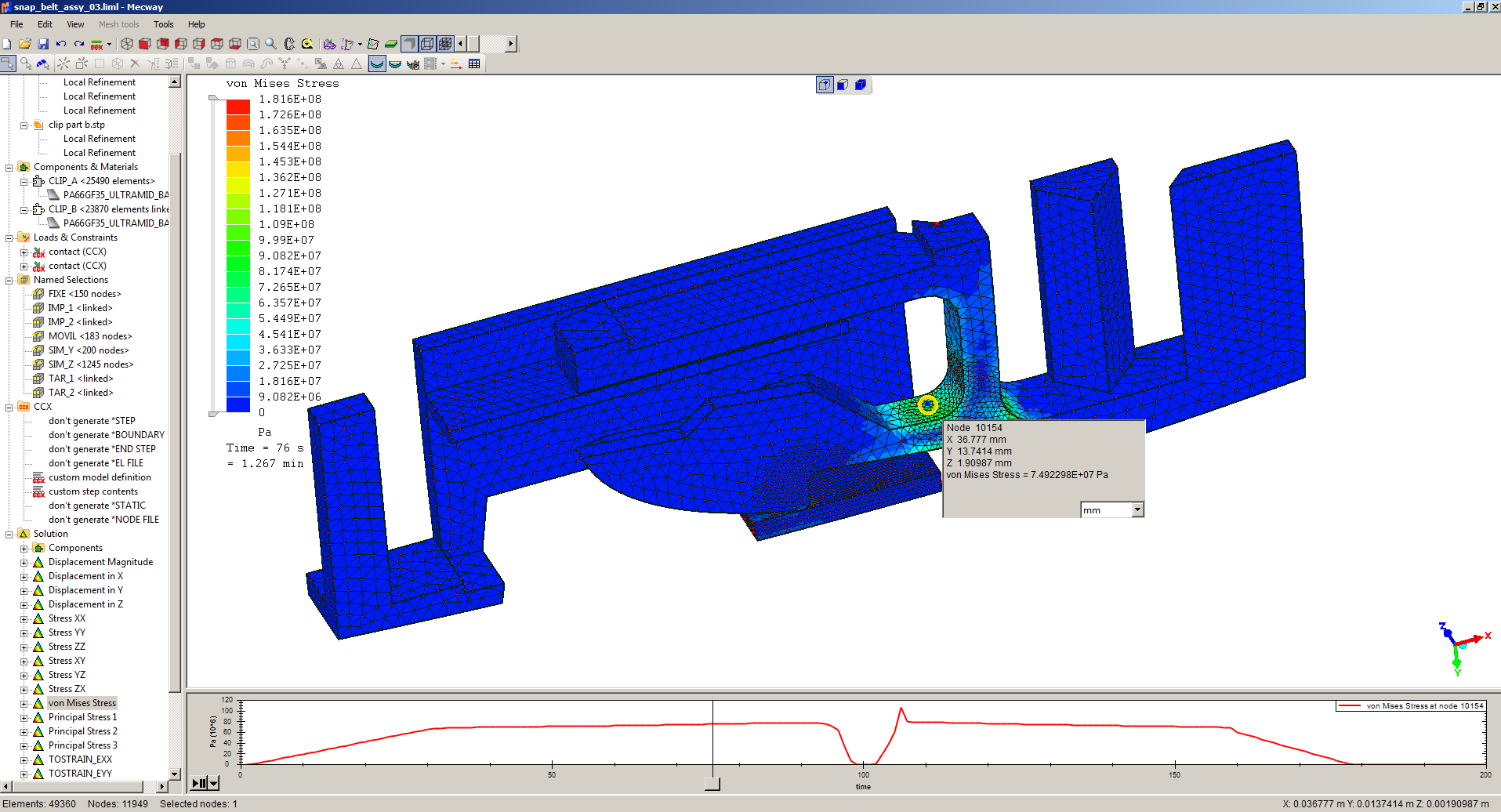

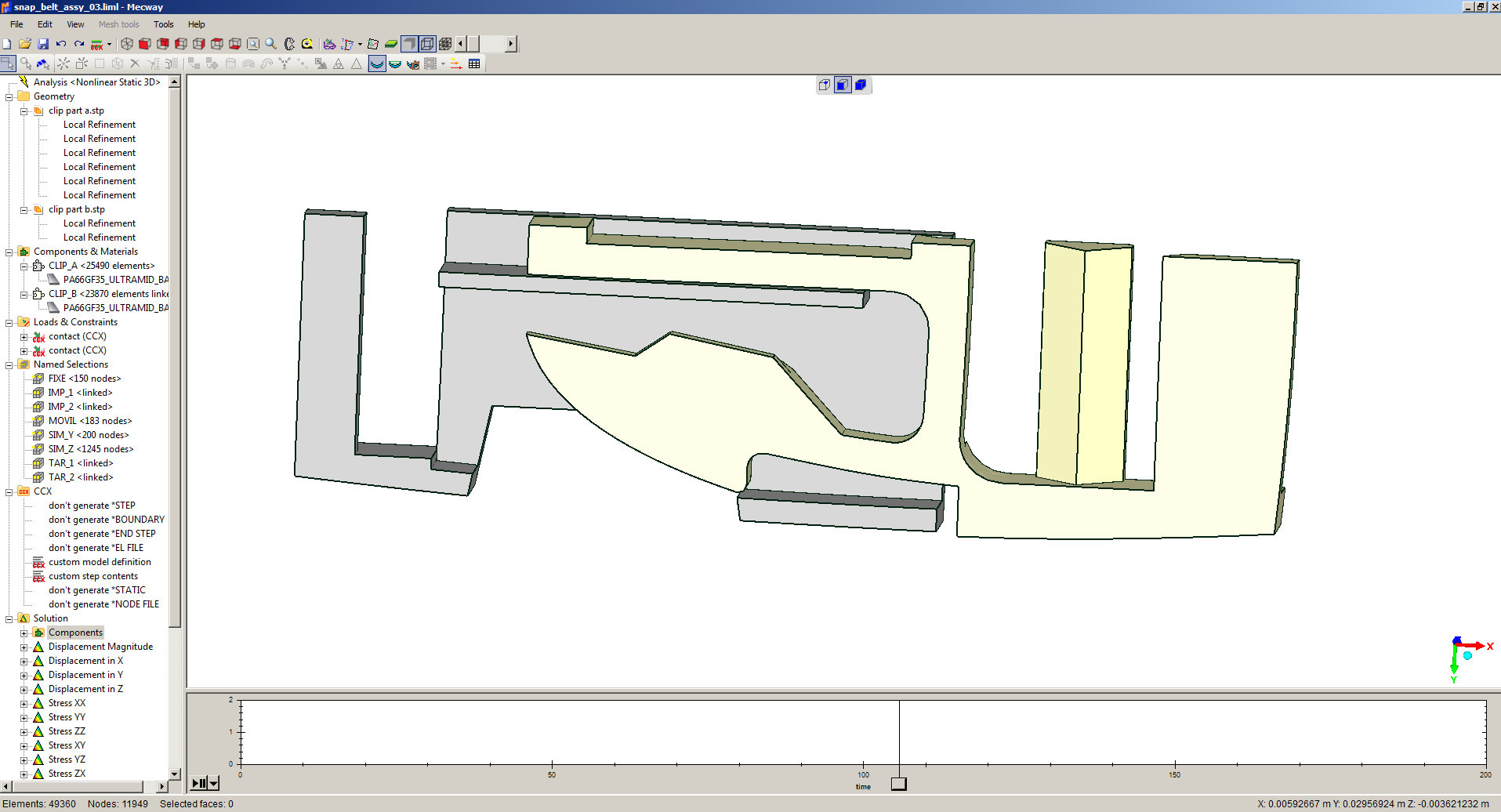

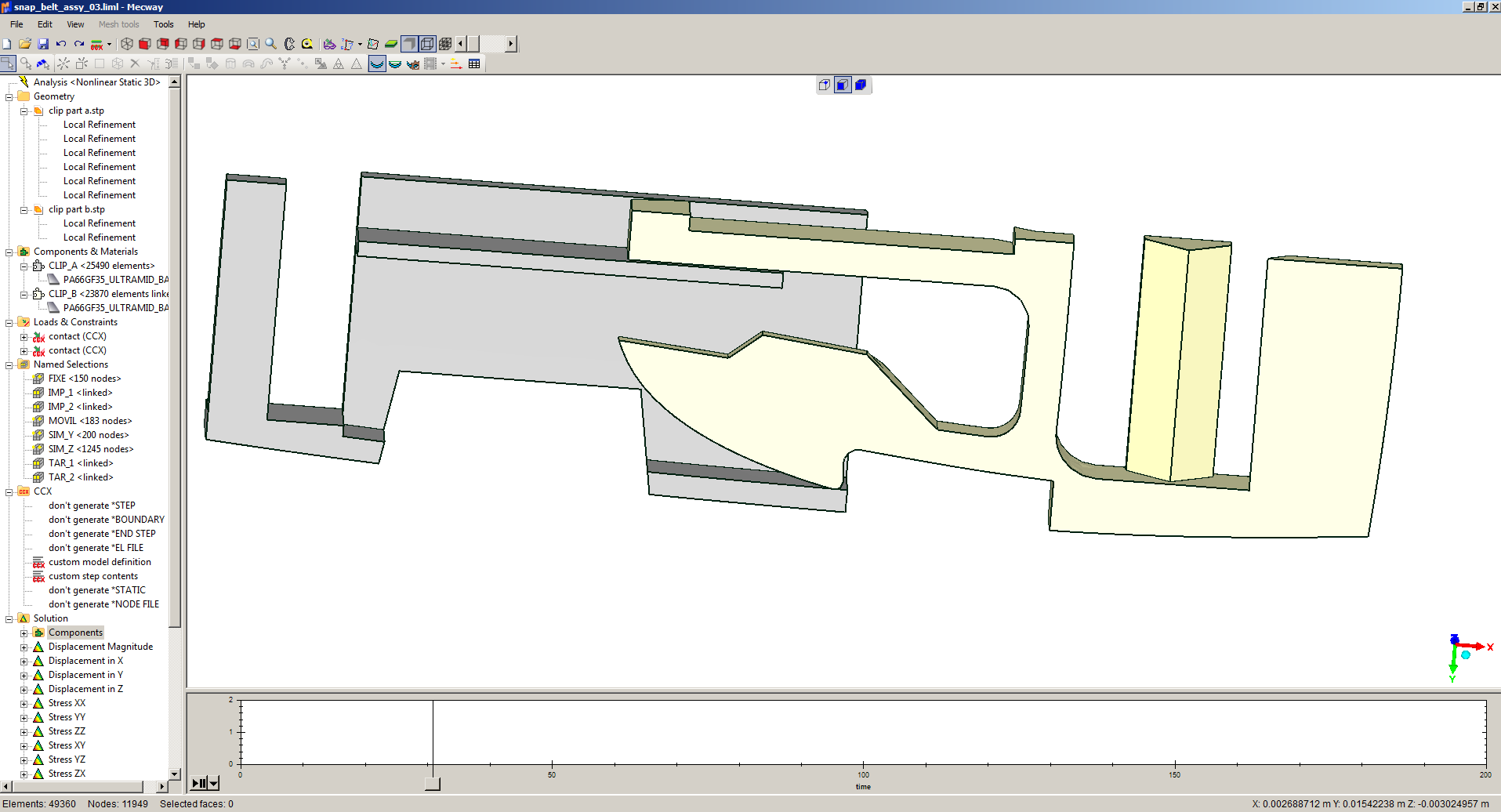

See how well CCX 2.10 manage the contacts, he even compute the case were the belt assemby is being under excesive force (and then fails and release without the normal lateral press-to-release).

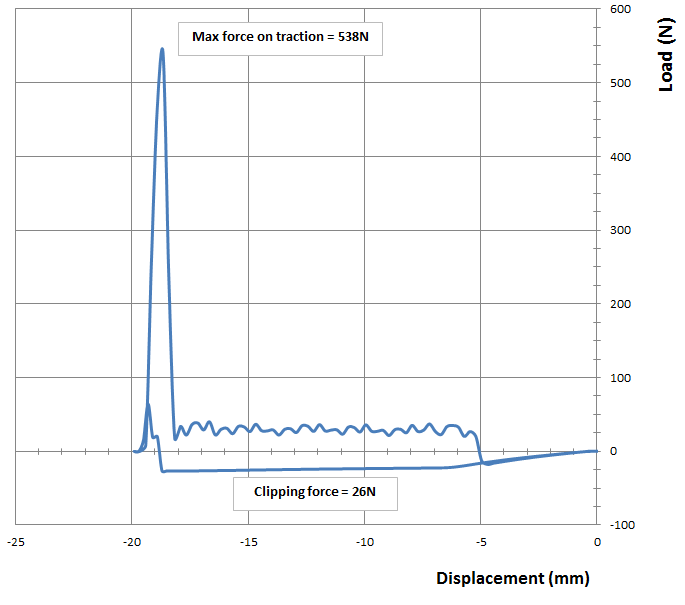

From the simulation now we know clipping/unclipping forces, stress under normal or abuse operation, stressed areas, if the part will have some interference... We can tune easily then the geometry or material to improve those values as we need and run again the simulation to see the improvements

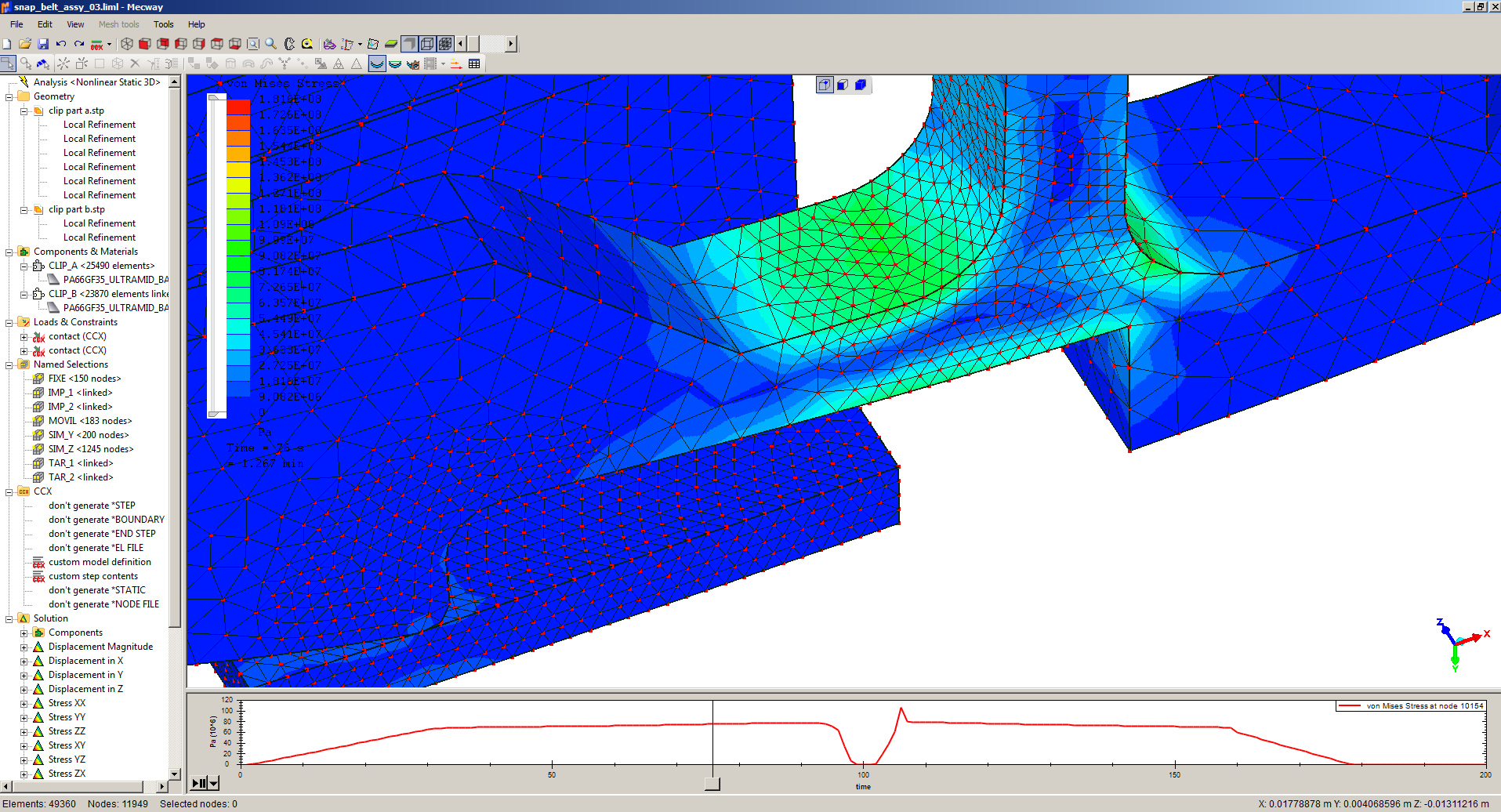

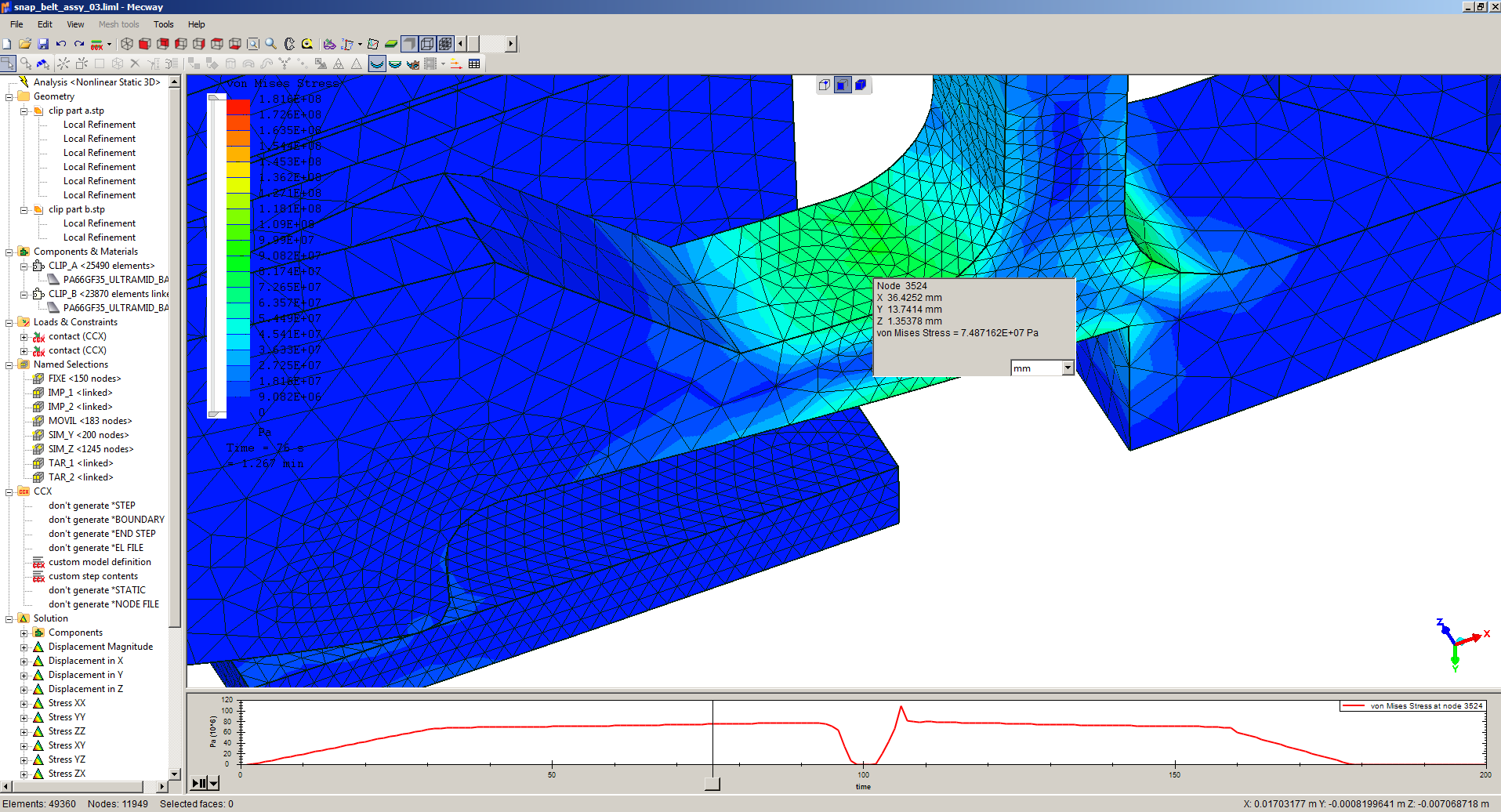

Having the posibility of ploting the stress vs time graph in the part in real time is also great, is easy to understand/asociate the peak stress before fail and releasing or the constant stress when being pushed (points for Mecway!). Is incredible to be allow to perform such complex simulation with an affordable software.
What next? Maybe adding the belt, and apply the traction load by means of that (as compression is made by hand appying forces directly in the plastics parts I didn't include), to test also the belt attachments.
Regards
drssp
Is the Plastic (CCX) material tab not active until a later version? I take it all plastic material properties for large deformation needs to be done at the moment through a manual case for CCX?
Thank you in advance.
That tends to be quite confusing especially since CCX automatically turns on geometric nonlinearities when you use a plastic material anyway, so I hope to clear this up in the next version.
