Table feature on CCX results

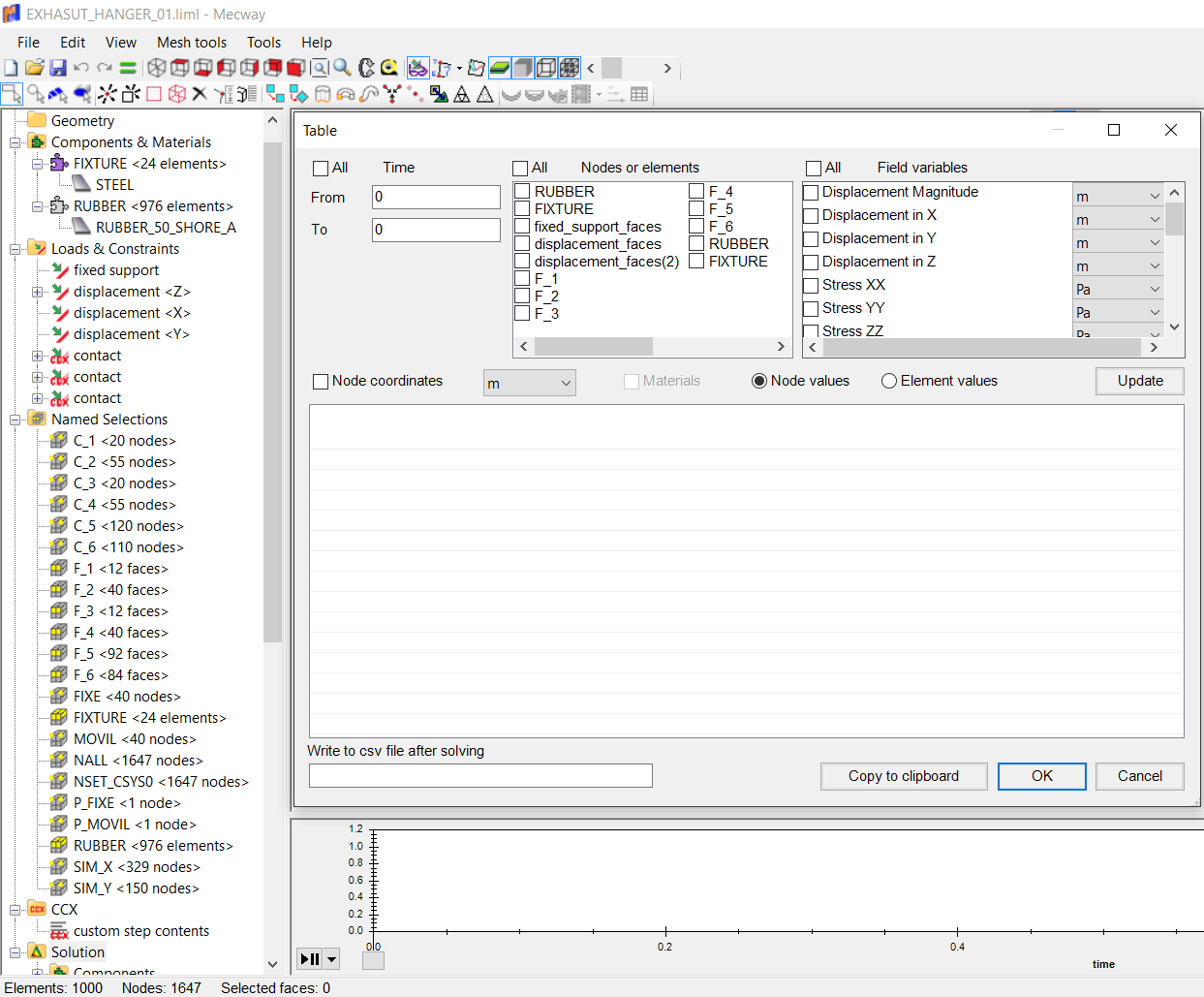

Hi Victor, I'm seeing how to get X-Y graphs on CCX simulations. I know how to do it by means of NODE PRINT, but the .dat file is not very friendly. Why in the Table window doesn't appear all the nodes/faces/elements named selections defined?


1243 x 1029 - 110K

Comments

  • It doesn't currently keep the node selections because any shell or beam elements will cause them to be renumbered when they're expanded in the solution and that's a little harder to keep track of. You should be able to work around it by making an element or face selection as well. I hope to include node selections in the future.
  • Will try it! In case of having nodes selections available will easily the plottings tasks. Regards
