Impressed with Mecway

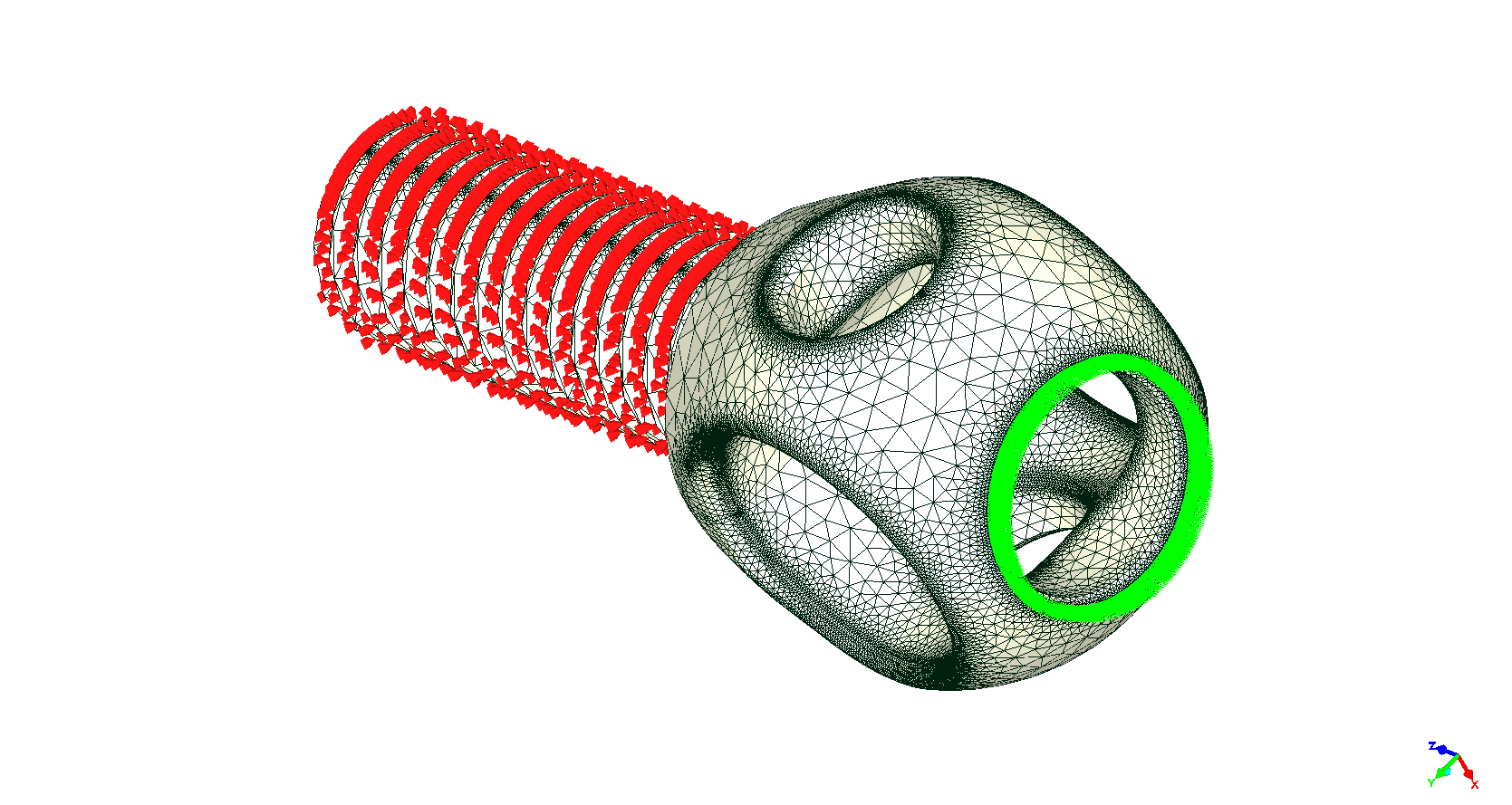

plastic analysis of a eyebolt I use for jacking light experimental aircraft. 600 lb edge load on the this tie down eyebolt, 330K total nodes.

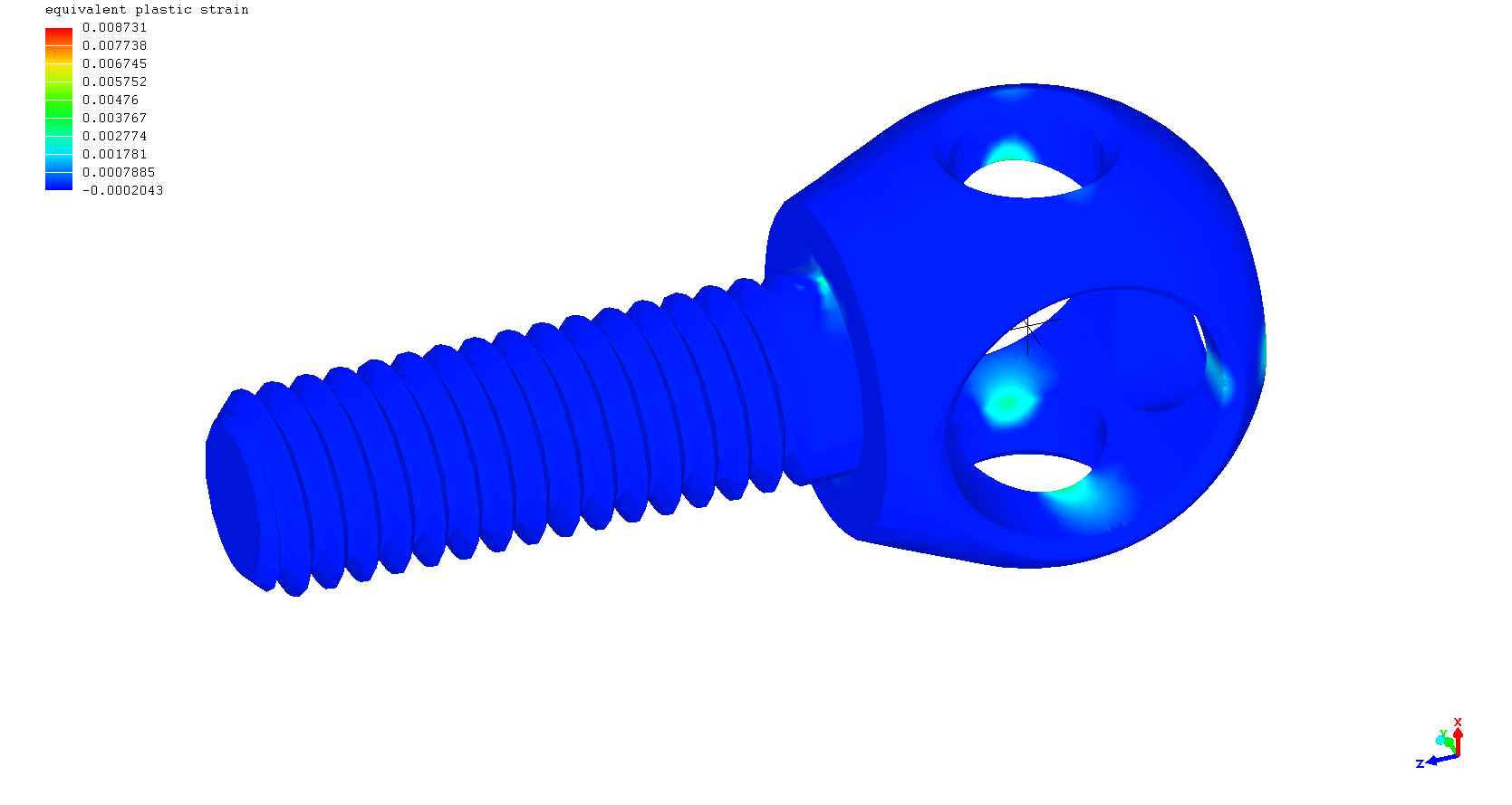

plastic eqiv strain.png
1669 x 889 - 155K

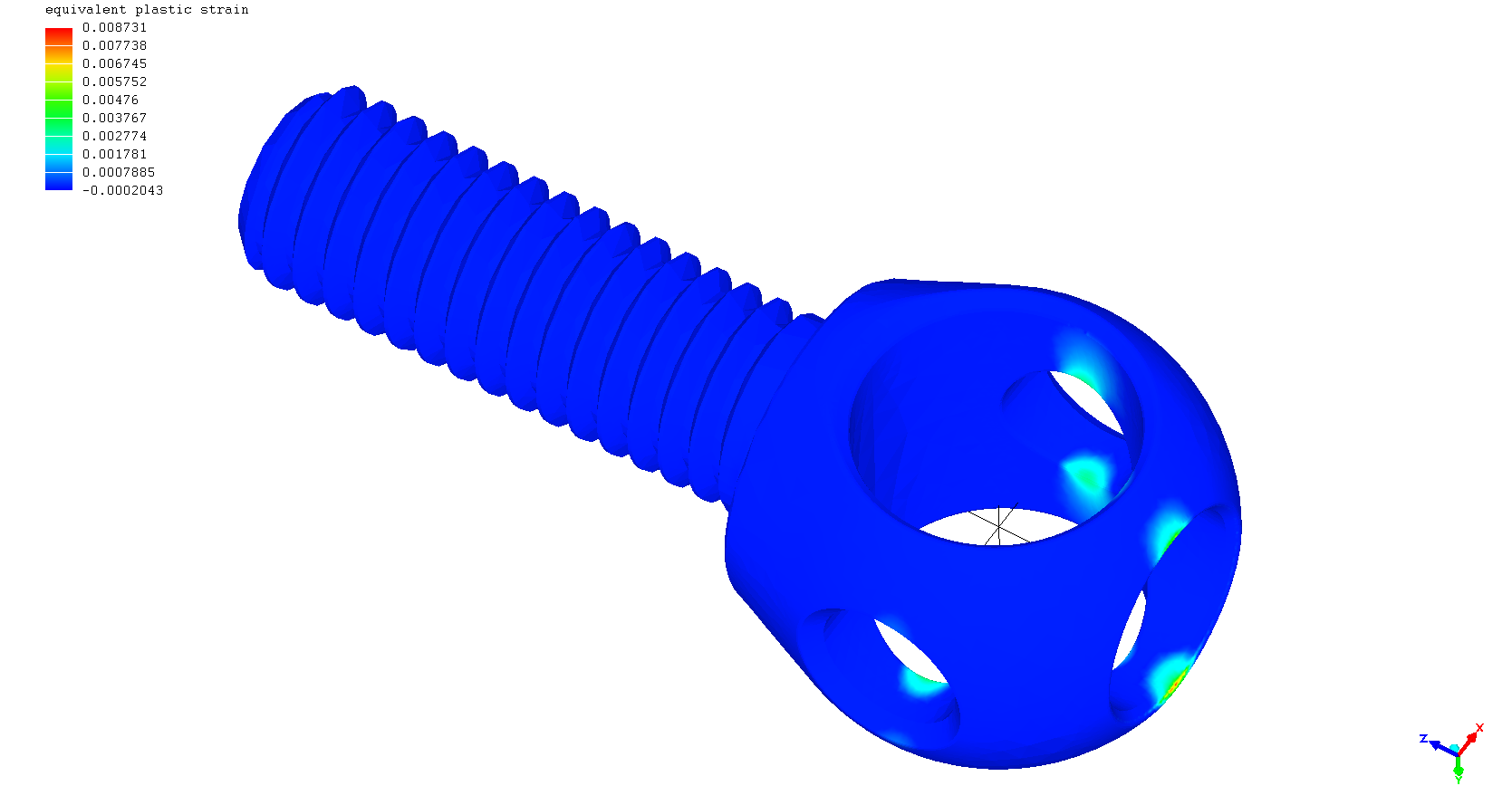

plastic eqiv strain2.png
1669 x 889 - 157K
1669 x 889 - 163K

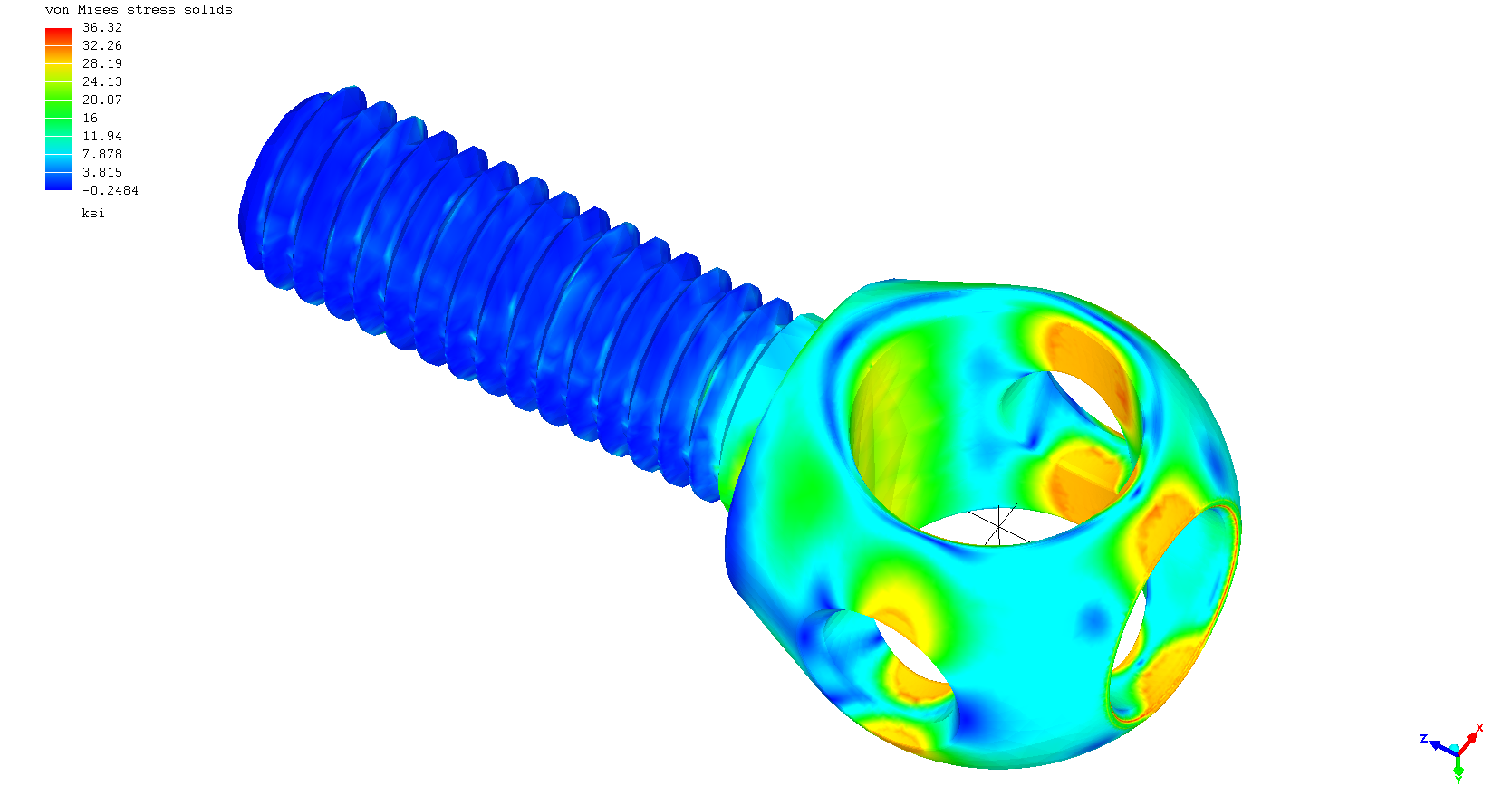

plastic VM stress.png
1669 x 889 - 502K

Comments

  • That's beautiful. Thanks for the post.
  • thank you for your excellent program! this is very beneficial to the experimental aircraft association since these are widely used. www.eaa.org
