Simply supported beam

hclcruzhclcruz
Hi,

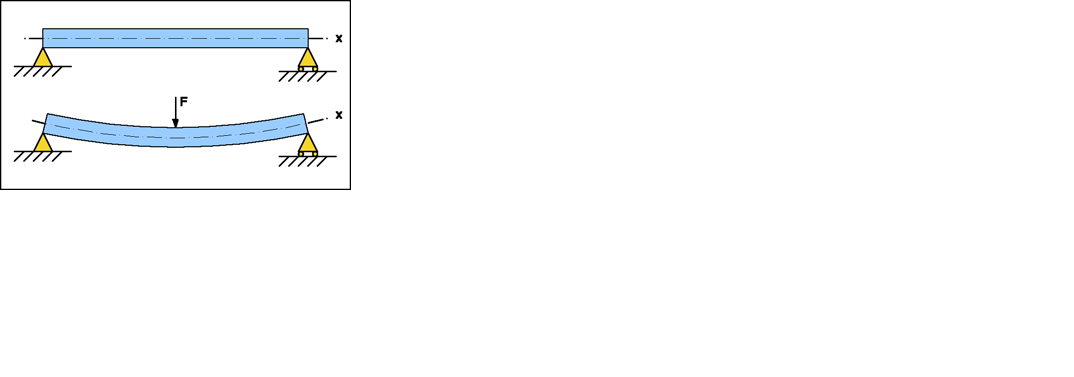

How can i apply constraints with rotation? (example in file)

Tkx,
Henrique

Comments

  • VictorVictor
    Use a displacement constraint. Typically select the row of nodes along the edge you're constraining then apply it. For shell elements, you can apply it to the edge "face" so that it's retained through mesh refinement.
